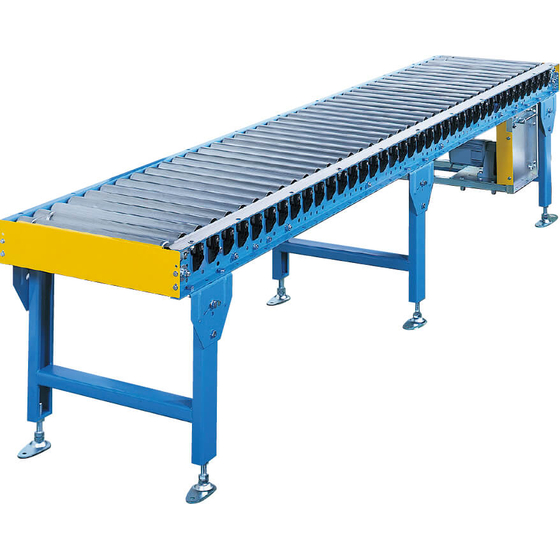

Chain-driven accumulator roller conveyor 3 times speed MCC1-AR
Multi-Beya Series - Conveyor units that can flexibly adapt to various logistics lines.
Drive the roller at 3 times the speed! The ideal accumulation roller conveyor for sorting and high-speed transportation.
Each roller is equipped with an accelerator (speed-up unit) on the inside of the sprocket, allowing the rollers to rotate at approximately three times the speed of the chain. By replacing the rollers of MCC1 and MCC2 with the rollers of MCC1-AR, they can be used as a speed-up or separation zone. 【Main Specifications】 - Reference transport mass: 64 kg/m (distributed load) - Length: 120 to 700 cm - Frame: [120×30×3.2 - Nominal width: 400 to 1000 mm
Inquire About This Product
basic information
【Features】 - Built-in accelerator for high-speed rotation - Easily integrated into existing lines (MCC1, MCC2) - Stable transport and space-saving design 【Other Specifications】 - Roller diameter: φ57 mm - Motor output: 0.2 kW, 0.4 kW, 0.75 kW - Minimum height: 450 mm (drive unit) *For detailed product information, please visit our website. *CAD data may be updated without notice. Please check our website for the latest data.
Price range
Delivery Time
Applications/Examples of results
■Addressing all needs from transportation to palletizing Each model is standardized, allowing for flexible combinations, and can meet all logistics needs from transportation to palletizing. ■Benefits of line configuration The flagship model of the Multi-Beya series, the "Counter Drive (MCD)," has a wide range of units. It can be driven by a single motor for straight sections, curves, merging, and branching, allowing for economical, rational, and flexible layouts through combinations of units. Additionally, there is a lineup of free roller conveyors that transport without power, which are easy to use, cost-effective, and help reduce labor in various tasks. ■Driven roller conveyor The driven rollers powered by a motor can use a round belt drive for inexpensive and simple accumulation. There is also chain drive, which drives rollers with sprockets via a chain. Flat and V-belt drives are suitable for high-speed and quiet transportation. Adjacent roller drive powers the rollers with a motor or motor roller. Motor roller drive operates through the rotation of the motor roller itself. These conveyors accommodate straight and curved transportation according to the form of conveyance.
catalog（2）
Download All Catalogs
Company information
Maruyasu Machinery is a machinery manufacturer that specializes in conveying equipment such as conveyors, as well as various automation and labor-saving machines. Through solving challenges related to "transportation," we contribute to automation, labor reduction, and energy conservation across a wide range of industries. We have adapted to any form of transportation that moves from right to left or top to bottom, handling all types of transported items including food trays, carton cases, plastic containers, and pallets. In addition to providing versatile standardized products (standard products), we have focused on offering products tailored to the individual needs of our customers. After 70 years since our founding, we will continue to dedicate ourselves to providing even more original products and services to overcome the challenging economic environment.
