At the same time as the ascent, the anti-tipping outriggers automatically deploy.
Rust-resistant, body made of molten zinc plating specification No specific self-inspection or special training required
Inquire About This Product
basic information

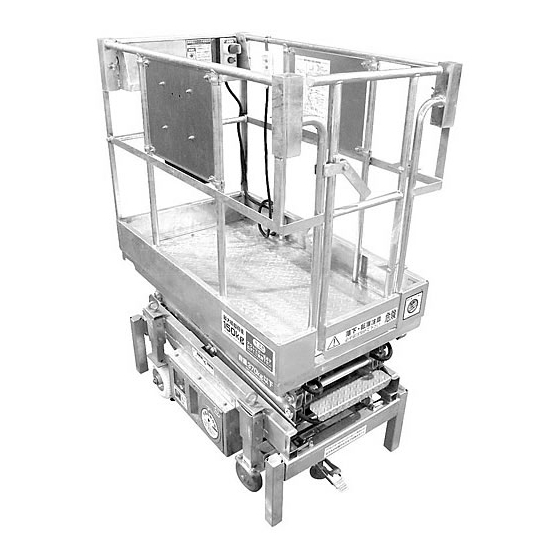

■Specifications Model Number: MC71S-3600VELS MC71S-4600VELS Maximum Load Capacity: 150kg Working Platform Height (mm): 745～3550 835～4590 Power Supply: Battery 12V 38Ah Battery 12V 65Ah Storage Dimensions (mm): W 700 750 L 1200 1405 H 1675 1765 Installation Dimensions (mm): W 1040 1310 L 1200 1405 Product Weight: 370kg or less 520kg or less Number of Lifts (Fully Charged): Approximately 50 times Lifting Device: Hydraulic Package DC12V 800W Rated for 30 seconds Charging Time: Approximately 6 hours Approximately 10 hours
Price range
Delivery Time
Applications/Examples of results
* The installation dimensions are for when the outriggers are extended. * Do not use on slopes or in areas with weak ground. * Please ensure to conduct a pre-operation inspection (check for oil leaks, operation buttons, charging status, and storage of charger cords). * Loads or tools should not extend beyond the work platform guardrails to avoid uneven or concentrated loads. * Always check the surroundings to ensure no one is present before operating. * Do not intermittently turn the pendant switch ON and OFF as it may cause a malfunction. * Do not pull on the pendant switch. * The battery naturally discharges, so please check and charge the battery approximately once every two weeks even when not in use or stored. * Do not operate while charging, as it may cause malfunction or electric shock. (Specifications do not allow operation [lifting/lowering] while charging.) * If not using for an extended period, turn off the circuit breaker to protect the battery. * Continuous ON and OFF of the circuit breaker may cause malfunctions. * Please read the instruction manual carefully before use.
