Unlock… Everything. We provide industry-leading performance through an intuitively usable interface.

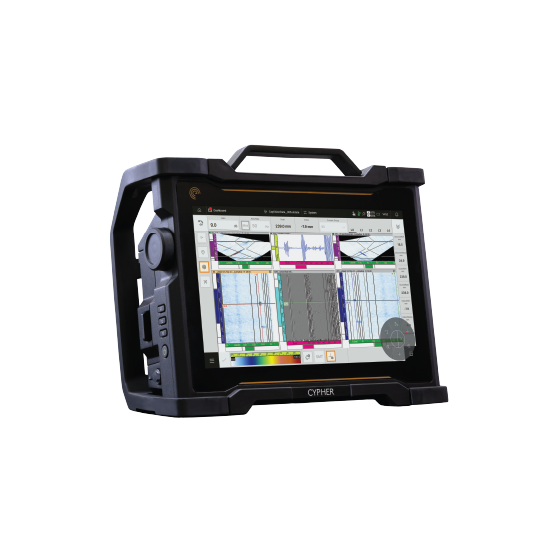

The portable PAUT-TFM device has evolved into a powerful fully integrated system, bringing together all the knowledge Eddyfi has cultivated so far. 【Key Features】 - Complete inspections compliant with various standards, thanks to industry-leading PAUT and TOFD capabilities. - Rapid result delivery achieved with TFM data acquisition speeds among the fastest in the portable category. - Experience a more intuitive and productive workflow with automatic probe recognition, smart setup guides, and guided data acquisition. - Maintain focus in any environment with a robust IP65 certified housing and a large 12.1-inch touchscreen optimized for outdoor use. - Real-time collaboration enabled through remote diagnostics, cloud backup, and seamless integration with Eddyfi's probes, scanners, and software. - Consistently deliver results with scalable power, from traditional welding inspections to high-speed, high-efficiency automated workflows.
Inquire About This Product
Related Videos
basic information
【Basic Specifications】 - Main Unit Size: 343mm × 276mm × 141mm - Weight: 6.6kg (with 1 battery installed) - Internal Storage: 2TB internal SSD - PAUT Connectors: 2x PA connectors, 4x UT channels (4x P/R connectors) - Drop Test Grade: Compliant with MIL-STD-810H - Display: 307mm (12.1in) TFT LCD multi-touch capacitive screen, 1280x800 pixels - Battery: Hot-swappable, lithium-ion battery, 87Wh (2 units) - Battery Life: Up to 5 hours of continuous use
Price information
Please contact us.
Delivery Time
Applications/Examples of results
Oil and Gas Sector: Providing portable solutions for pipeline welding, risers, and refining equipment. Capable of inspecting carbon steel and austenitic steel. Transportation Sector: Demonstrating reliable performance for rotating components such as train axles, enhancing evaluations where safety is required. Defense Sector: Providing robust inspections of welds and structural materials, ensuring the preservation of national assets with solutions suitable for defense applications. Manufacturing Sector: Offering stable evaluations for complex parts and quality assurance processes. Corrosion and High-Temperature Hydrogen Attack (HTHA): Equipped with advanced imaging capabilities for corrosion mapping, HTHA, and hydrogen-induced cracking (HIC) assessments, suitable for use in harsh environments. Power Sector: Efficiently conducting in-service inspections of turbines and boilers. Aerospace Sector: Addressing precise evaluations of composites, fasteners, and curved surfaces, with a focus on composite material inspections.
Line up（4）
| Model number | overview |
|---|---|
| CYPHER-16:128PR-TFM | Cypher 16:128TFM, equipped with real-time 32CH TFM. |
| CYPHER-32:128PR | Cypher 32:128 |
| CYPHER-32:128PR-TFM | Cypher 64:128TFM, equipped with real-time 64CH TFM. |
| CYPHER-64:128PR-TFM | Cypher 64:128TFM, equipped with real-time 128CH TFM. |
