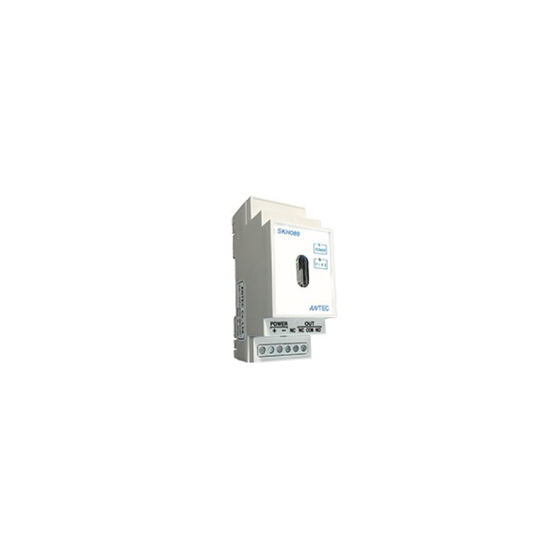

It is a sensor that detects sparks generated by opening and closing devices!
This is a sensor that detects sparks generated from switching devices, which is one of the causes of factory fires. It enables early detection of fires and contributes to the protection of customers' assets. 【Features】 1. Highly sensitive flame detection 2. Easy installation 3. Simple connection to PLC 4. Adjustable detection sensitivity 5. Compatible with various operating voltages *Please refer to the catalog for more details.
Inquire About This Product
basic information
【Specifications】 Detection Method: Ultraviolet detection method (wavelength 185–260nm) Detection Capability: Detects a flame of approximately 2cm from a distance of 5m Detection Timer: 0.5, 1-31 seconds (settable in 1-second increments) Power Supply Voltage: DC12–DC30V Power Consumption: 25mA in standby, 90mA during detection Alarm Output: 1C relay contact (AC125V-0.5A DC24V-1A) Alarm Activation Indicator: Red LED on the main unit (maintained for 30 seconds) Operating Temperature Range: 10℃ to +60℃ (no condensation or freezing) Size: W35.8mm × D89.6mm × H58.0mm Weight: 80g Case Material: ABS resin (white)
Price range
Delivery Time
Applications/Examples of results
Spark detection of the switch in the control panel.
