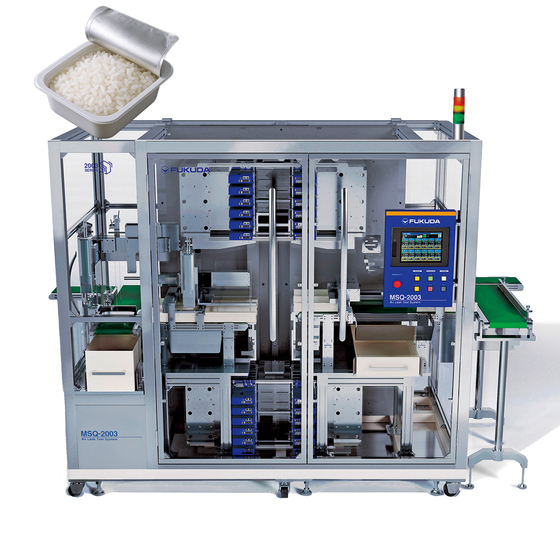

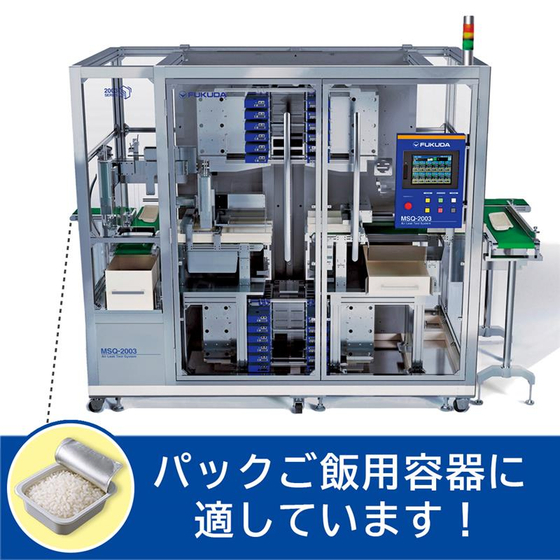

It is ideal for rice pack containers. The pinhole inspection process for packaging is fully automated, eliminating packaging defects based on consistent quality standards.
The pinhole inspection for packaging engineering is fully automated, eliminating packaging defects based on consistent quality standards. The judgment results and operational status can be managed via a monitor screen. - Example of target work: Ideal for packaged rice (packaged cooked rice). - Quantitative management of quality standards in the pinhole inspection process. - Ensures the quality of the product's shelf life. - Establishes evaluation criteria for the manufacturing process, achieving quantitative quality assurance. - Can be connected to existing production lines in a slim, space-saving design. - Changeovers for variety switching can be handled quickly by exchanging the chamber. - Since it is completely produced domestically, maintenance and troubleshooting can be addressed promptly. *Please consult us regarding the use of this product for pharmaceuticals.
Inquire About This Product
basic information
- Measurement method: Sealed chamber method (Pressure change leakage test method 1) - Variety setting: 1 to 100 groups (100 types) - Power supply voltage and consumption: AC 200 V ±10% three-phase 50/60 Hz 4kVA - Processing capacity: 60 pieces/min – *Depends on the inspection target, test conditions, measurement time, and the processing capacity of the packaging machine. - Detection accuracy (reference value): Equivalent to Φ50 μm – *Depends on the inspection target, test conditions, and measurement conditions. - Target work size (mm): Depends on the type and shape of packaging and the number of items inspected. Please consult us first. - Dimensions (mm): W2200×D1200×H2000 *Excluding protrusions - Weight: Approximately 1,500 kg (Note) - Equipment specifications will be determined through consultation. - Due to the type and shape of packaging, the work loading section and core (chamber) will be designed each time, thus it will be made to order. - Product specifications are subject to change without notice.
Price range
Delivery Time
Applications/Examples of results
We are accepting inquiries for custom machines based on your requirements for the packaging containers you wish to inspect. Please contact us for more details.
catalog（1）
Download All Catalogs
News about this product（2）
Company information
【 Various Leak Testing Solutions: Air Leak Test / Gas Leak Test (Hydrogen Gas, Helium Gas) 】 We develop, manufacture, and sell leak testing equipment to inspect airtightness and sealing performance. We will propose appropriate testers and devices for each inspection target. 【 Target Industries and Examples of Inspection Targets 】 - Automotive Industry: Engines, FC components, valves and piping, various parts - Electronic Components Industry: Smartphones, keyless switches, various small sensors - Pharmaceuticals / Food / Cosmetics Industry: Bottle containers, syringes, vials, eye drop containers, pillow packaging, PTP packaging We will propose the "optimal leak tester" for each industry. 【 ISO Certification 】JIS Q 9001:2015 (ISO 9001:2015) Head Office Address: 3-16-5 Nukui, Nerima-ku, Tokyo (Postal Code: 176-0021) Phone Number: 03-3577-1111 (Main)
