Challenging Extreme Environments - The Sentry-X2 MIL Rugged System (ESG630) Pioneers the World of Robust AI

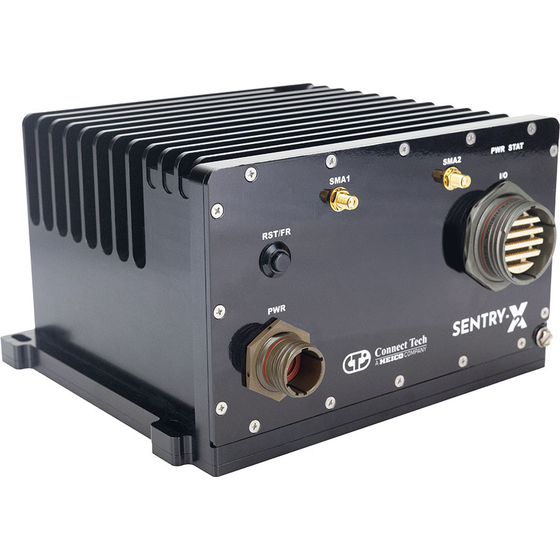

The Sentry-X2 MIL rugged system is a robust AI system equipped with NVIDIA Jetson AGX Orin Industrial, designed for mission-critical applications at the tactical edge. It has an AI computing performance of 248 TOPS, making it ideal for complex image processing and machine learning. It features up to four 3G-SDI inputs and two 3G-SDI outputs, capable of supporting complex video systems. Additionally, it offers a rich array of I/O options including 10GbE, 2.5GbE, and USB 3.2, providing flexibility for tactical field deployment. This product meets MIL-STD-810H environmental testing and MIL-STD-461G EMI/EMC standards, and employs IP67 compliant D38999 connectors to achieve the high reliability required for military, aerospace, and heavy industrial applications.
Inquire About This Product
basic information
Mounted Module: NVIDIA Jetson AGX Orin Industrial (248 TOPS) GPU: Ampere 2048 cores + 64 Tensor cores CPU: Arm Cortex-A78AE 12 cores Memory: LPDDR5 64GB (ECC supported) Storage: NVMe up to 2TB (expandable) Video Input/Output: SDI Input x4 / Output x2 (optional), DisplayPort 1.4 (4K60) USB: USB 3.2 x2 (10Gbps) Network: 10GbE x1, 2.5GbE x1, 1GbE x1 (ESG630 only) I/O: GPIO, UART, I2C, SPI, CAN Security: Equipped with TPM2.0 Power Input: +28V (+16V to +50V), compliant with MIL-STD-704F Expansion: WiFi / Bluetooth, MIL-STD-1553B (optional) Enclosure: 200 x 180 x 125mm, 2.5kg Operating Temperature: -40°C to +70°C, compliant with IP67 MIL Standards: MIL-STD-810H (environmental), MIL-STD-461G (EMC/EMI), DO-160H Warranty: 1 year
Price range
Delivery Time
Applications/Examples of results
Use Cases - Tactical AI systems in military and defense fields - Real-time image analysis and machine learning in aerospace - Autonomous control systems in heavy industry and mining - Mission-critical AI inference in harsh environments Achievements and Advantages - Robust design compliant with MIL-STD and IP67 to withstand extreme environments - High computational performance of 248 TOPS enables real-time execution of complex AI processing - Supports complex video systems with up to 4 channels of SDI input and abundant I/O - Advanced security ensured by the inclusion of TPM 2.0
Detailed information
catalog（1）
Download All Catalogs
