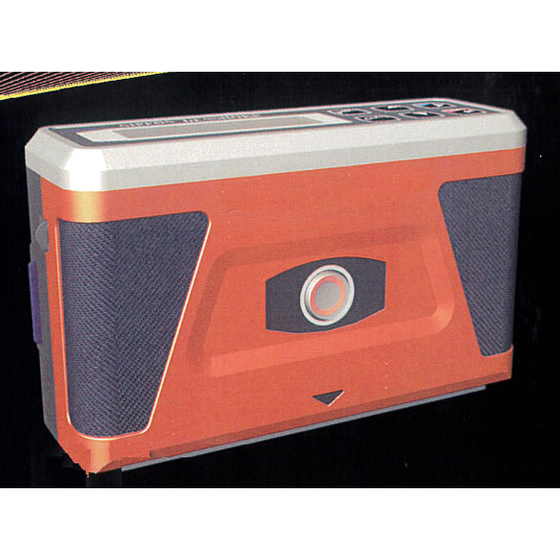

Compact, lightweight, easy to operate, cordless; complies with JIS, ISO, and ASTM gloss standards.
■Features 1. An uncompromising optical system that combines portability with robustness and high precision. 2. Data is instantly displayed simultaneously for measurements at single or multiple angles. 3. Capable of measuring gloss, gloss difference, and reflectance. 4. Real-time measurement at a single angle is possible. 5. Measurement data can be saved to internal memory or an SD card.
Inquire About This Product
basic information
■Specifications Measurement Angle: VG1 can be set to one of the angles 20°, 45°, 60°, 75°, or 85° VG1M can be set to three angles: 20°, 60°, or 85° Measurement Area: 20° 9.0×8.5mm 45° 9.0×11.0mm 60° 8.6×15.5mm 75° 6.8×22.0mm 85° 5.8×34.4mm Related Standards: JIS Z 8741 / ISO 2813 / ASTM D 523 Light Source: White LED Receiving Element: Photodiode Measurement Range: 20° Glossiness 0.1–2000 45° Glossiness 0.1–1675 60° Glossiness 0.1–1000 75° Glossiness 0.1–378 85° Glossiness 0.1–162 (Equipped with automatic sensitivity switching function) Resolution: Gloss value 0–200 (less than) → 1 decimal place Gloss value 200–2000 → Integer Measurement Items: Glossiness · Glossiness Difference · Reflectance · Pass/Fail Judgment Data Memory Count: Reference Data: 10, Measurement Data: 500 SD Card: Can save as text file (CSV) Measurement Accuracy: Temperature 23 degrees / Humidity 30% Standard Black Board, powered on for 10 minutes, measured 20 times at 10-second intervals.
Price range
Delivery Time
Applications/Examples of results
6. Adoption of LED light sources reduces the hassle of lamp replacement and running costs. 7. Optionally, the measurement opening size can be changed. 8. Glossiness is traced by the National Institute of Advanced Industrial Science and Technology. 9. Comes with a hand strap for fall prevention. 10. Supports external interfaces, remote measurement, and production line integration. 11. Equipped with Bluetooth communication functionality, allowing wireless data transmission to a PC.
