The world of multi-camera AI expanding with NGX020 Boson.

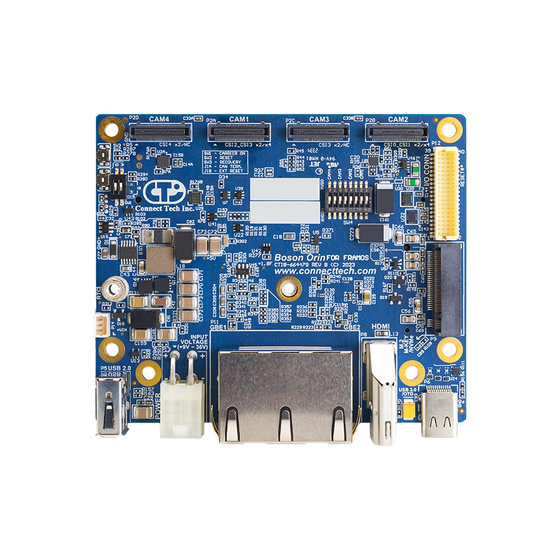

The Boson for FRAMOS carrier board is a high-performance AI vision carrier board compatible with NVIDIA Jetson Orin NX and Orin Nano modules, integrating up to four MIPI cameras in a compact size. It is specifically designed with integration into the FRAMOS sensor ecosystem in mind and can accommodate a variety of sensor modules. By adopting PC-style connectors, it accelerates application development utilizing multiple cameras on the Jetson platform. Additionally, it supports 2-lane and 4-lane MIPI configurations, enabling flexible system deployment.
Inquire About This Product
basic information
Ethernet: Gigabit ×2 Camera Input: FRAMOS PixelMate ×4 - 4-lane MIPI sensor module ×2 - Or 2-lane MIPI sensor module ×4 Storage: NVMe M.2 M-Key 2280 (PCIe 4-lane) ×1 M.2 Expansion: E-Key 2230 (for WiFi/BT) ×1 USB: USB 3.1 Gen2 Type-C (OTG) ×1, USB 2.0 Type-A ×1 Video Output: HDMI 2.0 ×1 Interface: - TTL UART ×3 (one for console) - GPIO ×8 (2 with PWM support) - I2C ×2 - CAN 2.0b ×1 - SPI ×2 - Power terminals 3.3V ×2 / 5V ×2 / GND ×8 Power Input: DC +9V to +36V (auto power-on supported) Cooling: PWM controlled fan connector ×1 RTC Battery: External connector ×1 Operating Temperature: -40°C to +85°C Dimensions: 90 × 75mm Weight: 80g
Price range
Delivery Time
Applications/Examples of results
Usage Examples - High-precision image recognition system using FRAMOS sensors - Multi-camera AI processing in autonomous vehicles and industrial robots - Surveillance and traffic management applications for smart cities - Image analysis and AI inference in medical and research fields Achievements and Advantages - Complete compatibility with the FRAMOS sensor ecosystem - Supports both Orin NX and Nano modules, allowing selection of AI processing capabilities based on application - Compact housing with abundant I/O and high expandability - Wide power input range and robust design, ideal for industrial and outdoor applications
