Combining high-precision sensing capabilities with excellent environmental resistance! Achieving proper environmental management.

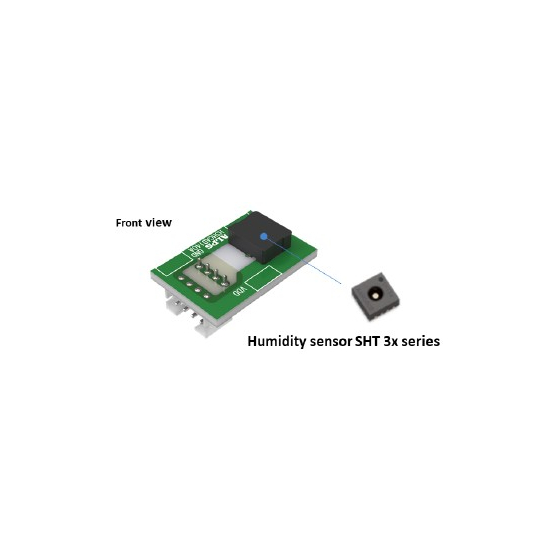

The "HSHCAD140A" is a module-type digital output relative humidity sensor (with temperature output). It enables accurate humidity detection up to 100% RH. With high environmental resistance, it improves the flexibility of sensor placement and mechanical design. Additionally, it can flexibly accommodate your hardware design. 【Product Features】 ■ Capacitive sensor (0-100% RH full range detection) ■ Digital output and temperature output are also possible, making it usable as a temperature and humidity sensor ■ High detection accuracy (±4.5% RH guaranteed, actual value ±2.5% RH) ■ Easy-to-use operating voltage range of 2.5V to 5.5V depending on the device ■ User-friendly I2C output *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Specifications (Partial)】 ■Humidity Detection: Relative humidity ■Operating Temperature Range (°C): -25 to +85 ■Measurement Range (%RH): 0 to 100 ■Power Supply Voltage (V): 2.5 to 5.5 ■Current Consumption (mA): 0.6 ■Accuracy (%RH): ±2.5%RH at 10-90%RH Typ ■Response Time (sec): Humidity: 51 typ. t = 90% (30-90% RH) ■Size (mm): 24 x 16 x 9.5 *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Delivery Achievements】 ■Portable Devices ■Business Equipment (Copiers) ■White Goods *For more details, please download the PDF or feel free to contact us.
