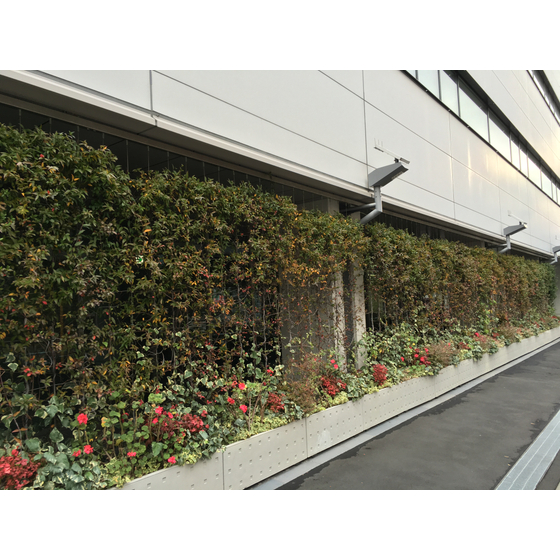

Wall greening with a planter and a φ6 spiral wire set integrated into one unit.
- Two lineups of FRP planters: one integrated with Tohshin Corporation's FRP planters and the Ultima coated φ6 spiral wire set, and the other as a basket planter specification. - A system that excels in workability, functionality, design, and cost-effectiveness. - Uses climbing plant greening wire (coated φ6 spiral wire set)! - Supports flexible tension patterns unique to wire (stripes, checkered)!
Inquire About This Product
basic information
1. Workability - The lower end wire attachment component consists only of green curtain hooks or can be directly attached to the planter. - No lower end rail is needed, no anchoring is required; simple installation by just screwing the green curtain hooks to the FRP planter. - The spiral wire set can be easily attached to the holes of the green curtain hooks. 2. Functionality: - Wire tensioning can accommodate both vertical and inclined setups. - The installation points for the green curtain hooks can be on the outside or inside of the FRP planter. - Installation to the structure can be done on either the wall side or the ceiling side. 3. Design: - Simply attaching the wire to the green curtain hooks mounted on the planter results in a cleaner design. - A landscape that appears as if the planter and wire are integrated. - Wire tensioning can be done in stripes (vertical only) or checkered patterns (vertical and horizontal). 4. Cost: - The wire attachment component consists only of green curtain hooks; no lower end rail, lower end brackets, lower end eye runners, or anchor bolts are required. *For more details, please refer to the materials. Feel free to contact us with any inquiries.*
Price range
Delivery Time
Applications/Examples of results
*For more details, please refer to the materials. Feel free to contact us as well.*
catalog（6）
Download All Catalogs
![[Proposal] Wire-type Wall Greening Method Ultima Wall Greening System](https://image.mono.ipros.com/public/catalog/image/2032865/IPROS18165339625316634948.jpeg?w=120&h=170)
CAD data（6）
| Model number | overview | File |
|---|---|---|
| Wire planter integrated wall greening (jagako planter specification) Wire mesh: stripe (vertical only) _L angle | Wire planter integrated wall greening: Jikago planter specification. Wire mesh: Stripe (vertical only) _W2000×H3000, support material: L-angle. |
|
| Wire planter integrated wall greening (jagako planter specification) Wire mesh: checkered cross (vertical and horizontal) wall-mounted (opening) L-angle | Wire planter integrated wall greening: Jakago planter specification. Wire mesh: checkered cloth (vertical and horizontal) _W2000×H3000_ wall-mounted (opening), support material: L-angle. |
|
| Wire planter integrated wall greening (jagako planter specification) Wire mesh: check cross (vertical and horizontal) _L angle | Wire planter integrated wall greening: Jakago planter specification. Wire mesh: checkered cloth (vertical and horizontal) _W2000×H3000, support material: L-angle. |
|
| Wire planter integrated wall greening (jagako planter specification) Wire mesh: Stripe (vertical only) with eye bolt support. | Wire planter integrated wall greening: Jikago planter specification. Wire stretching: Stripe (vertical only) _W2000×H3000, support material for installation: Column with eye bolts. |
|
| Wire planter integrated wall greening (jagako planter specification) Wire mesh: checkered cross (vertical and horizontal) _ opening _ with eye bolt support pole | Wire planter integrated wall greening: Jakago planter specification. Wire mesh: checkered cloth (vertical and horizontal) _W2000×H3000_ wall-mounted (opening), support material: post with eye bolt. |
|
| Wire planter integrated wall greening (with jaga basket planter specification) Wire stretching: check cross (vertical and horizontal) with eye bolt support pole | Wire planter integrated wall greening: Jakago planter specification. Wire mesh: check cloth (vertical and horizontal) _W2000×H3000, supporting material for installation: post with eye bolts. |
|
