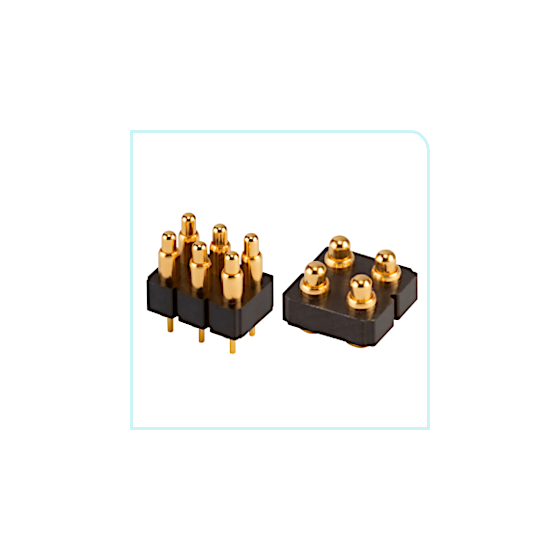

36 new models have been introduced, including pogo pin blocks (spring pin headers), high current rated types, and contact pads.
The lineup of Same Sky's pogo pins has been newly expanded to include 36 models, featuring pogo pin blocks (spring pin headers), high current rating types, and contact pads. The maximum rated current reaches 25A, and the mating life is up to 100,000 cycles. Our pogo pins, available in a variety of sizes and shapes, can accommodate all designs.
Inquire About This Product
basic information
No-load height: 0.2 mm ~ 15.5 mm Recommended stroke: 0.2 mm ~ 2.3 mm Plunger diameter: φ0.6 mm ~ φ2.4 mm Operating force (at recommended stroke): 15 gf ~ 260 gf Rated voltage / current: 5 Vdc ~ 36 Vdc / 0.5 A ~ 25 A Mounting type: SMT, through-hole, lead wire connection Pogo pin block number of pins: 2 pins, 4 pins (2 x 2 rows), 6 pins (2 x 3 rows) Pogo pin introduction page >> https://samesky.co.jp/SS-Products-connector-POGOpin.html
Price range
Delivery Time
Applications/Examples of results
Communication device, portable equipment, inspection machine, battery dock.
