For high-precision measurements, a granite base is used for the measurement base.

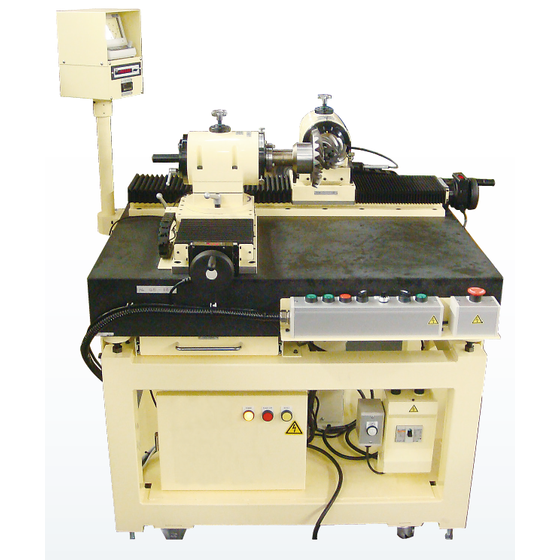

The "QB-146 type" is a testing machine that conducts tooth contact tests for spur gears, helical gears, and bevel gears as standard specifications. As an option, it can also accommodate tooth contact tests for hypoid gears and both tooth surface engagement tests for spur gears, helical gears, and bevel gears. Additionally, to ensure high-precision measurements, a granite base is used for the measurement base. 【Features】 ■ A granite base is used for the measurement base to ensure high-precision measurements. ■ Optionally supports both tooth surface engagement tests. *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Outline Specifications】 ■Power Supply: AC200V 2KVA ■Load Brake: Can be set to any load with dial settings ■Target Work: Maximum diameter φ250mm, maximum weight 10kg (including fixtures) ■Axis Angle: Can be set to any position from 0 to 360° ■Rotation Speed: Stepless setting from 0 to 1000rpm, capable of forward/reverse rotation ■Size: 1000(W) × 750(D) × 1450(H) *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Usage】 ■Bite Test *For more details, please download the PDF or feel free to contact us.
Company information
Daibishi Instrument Manufacturing Co., Ltd. has been achieving unique results as a member of the precision measurement instrument industry since its founding in 1949 (company established in 1951). We propose suitable solutions tailored to our customers' needs, including automatic measurement devices, dedicated measurement devices, ultra-precision standards, levels, surface plates, and straightness measuring instruments. In addition to standard products, we also accept large surface plates and automatic/semi-automatic measuring devices that include design. We leverage high-level technology to provide high-precision products, ensuring customer satisfaction with short delivery times.
