Contributes to streamlining assembly creation and reducing work time! It's a convenient feature related to matching.
Introducing the convenient features of SOLIDWORKS: "Slot Mate" and "Copy with Mates." By utilizing the mate-related functions, you can streamline assembly creation and reduce working time. There is an advantage in that it can be done more easily with fewer settings compared to combining with standard mates. [Features] ■ Streamlines assembly creation and reduces working time by utilizing mate-related functions. ■ Easier to do with fewer settings compared to combining with standard mates. *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information

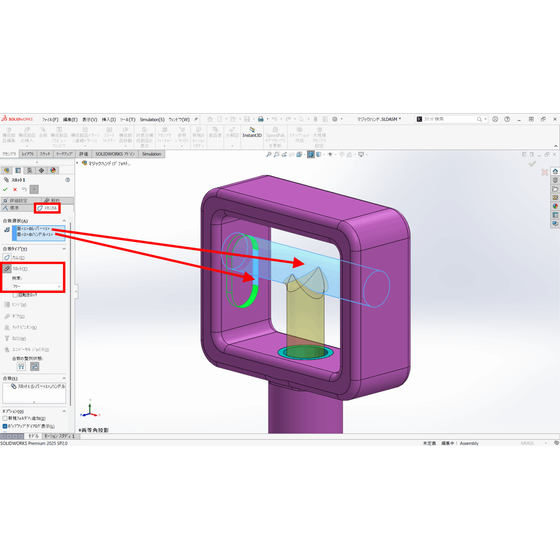

【Instructions】 1-4. Refer to the first part of "7 Convenient Functions of SOLIDWORKS" 5. To slide the lever component within the slot attached to the inner side of the handle component, apply a mechanical fit called "slot fit." 6. Add one arm component. 7. Add one link component. 8. Copy and add the previously added arm component and link component. 9. When you click OK, the arm component and link component will be copied like a mirror copy. Confirm that the lever component slides and the arm component opens and closes in conjunction. *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
