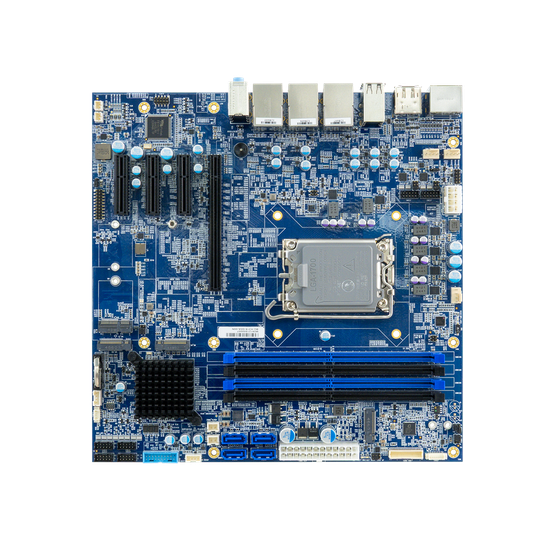

Intel 12th, 13th, and 14th generation Core processor equipped Micro-ATX standard embedded CPU board
Features: • Featuring Intel 14th/13th/12th Gen. Core i9/i7/i5/i3 & Pentium/Celeron • Optional Intel R680E/Q670E/H610E PCH • Max. 6 x COM, 3 x LAN, and 14 x USB ports (R680E/Q670E) • 1 x HDMI & 3 x DP • 4 x PCIe & 4 x M.2 slots for versatile expansion (R680E/Q670E)
Inquire About This Product
basic information
CPU: Core i9/ i7/ i5/ i3, Pentium/ Celeron Chipset: Intel R680E / Q670E / H610E Memory: R680E: 4 x DDR5 UDIMM (ECC/non-ECC, up to 192GB) Q670E: 4 x DDR5 UDIMM (up to 192GB) H610E: 2 x DDR5 UDIMM (up to 96GB) SATA: 4 x SATA 3.0 I/O Ports: 3 x LAN (2.5 GbE), 10 x USB (6 x 3.0, 4 x 2.0), 6 x COM (wafer), 1 x DIO 8 IN/ 8 OUT (pin header) Display: 3 x DP, 1 x HDMI, 1 x eDP / LVDS Expansion Slots: R680E / Q670E: 1 x PCIe (x16), 2 x PCIe (x4), 1 x PCIe (x1), H610E: 1 x PCIe x16, 1 x PCIe x4 Power Supply: Flex ATX 20+4 pin
Price range
Delivery Time
Applications/Examples of results
Embedded devices for factory automation, retail, transportation, healthcare, and gaming.
catalog（1）
Download All Catalogs
Company information
Protech Japan Co., Ltd. is the Japanese branch of Protech Systems, a company headquartered in Taiwan. Since its establishment in 1980, Protech Systems has steadily grown as a specialized manufacturer designing and producing embedded computers for industrial applications such as FA systems, industrial robots, CTI, measurement, aerospace, medical, and banking. In the highly competitive industrial board computer industry, we play a significant role as a leading company in industrial PC manufacturing, thanks to our advanced technology and flexibility. We aim to develop together with our customers by providing high-quality, high-performance products and reliable support, guided by our motto of "Honesty, Diligence, Trust."
