It is possible to reduce the risk of damage to mounted components because the mounting substrate can be cut with low stress.

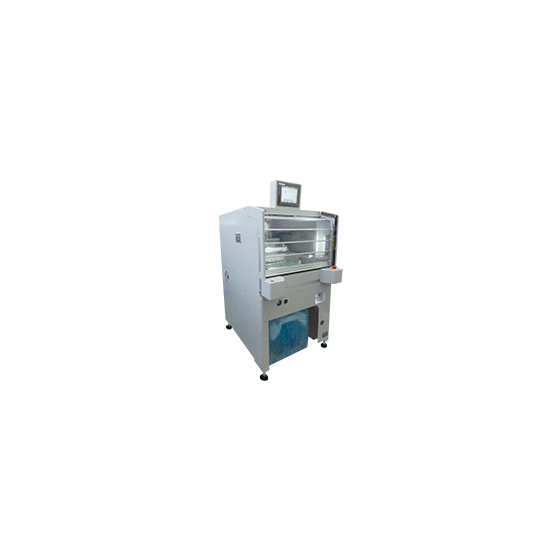

This is a device that divides a large number of small, complex-shaped circuit boards using a router method. It cuts away unnecessary parts of the complex shapes of printed circuit boards after assembly using a router bit. Since it can cut printed circuit boards with low stress, it reduces the risk of damage to mounted components (such as multilayer ceramic capacitors) caused by stress in conventional hand-breaking or pressing methods. The board division with a single cut using a router bit results in no burrs, and the cut surface is clean, eliminating the need for sanding or similar processes. *Please consult us as there are certain conditions for application. The created cutting programs are centrally managed on a server, allowing for the switching of multiple programs. It connects to higher-level production systems and supports data collection (operating time, start and end times of division, equipment abnormality information, router bit lifespan management, etc.) (e-F@ctory compatible). By widening the opening width of the device's access door, setup efficiency is improved. By incorporating a dust collector into the bottom of the device, space-saving is achieved. The acceleration of the X-Y axis movement speed (three times compared to our conventional models) significantly improves productivity. The Z-axis position can be set for each cutting point, allowing for a reduction in takt time.
Inquire About This Product
basic information
Item: MR2535H2 Maximum substrate size (length × width): 250mm × 350mm, compatible with M size substrates *Please consult for L size substrates Substrate material: Glass epoxy (FR-4), resin substrates such as CEM-3 Board thickness: 0.4–2.0mm Positioning method: Positioning using jigs X-Y axis positioning method: 2-axis AC servo control Maximum cutting speed reference value (at spindle 50,000rpm): 100mm/s (router diameter ø3.0mm, board thickness t=0.4mm) (recommended continuous use value: 20mm/s or less) X-Y axis movement speed: Maximum 1,200mm/s Repeat positioning accuracy: ±0.01mm Z-axis specifications: AC servo drive, 100mm stroke Collet size: ø3.175mm (1/8 inch) Router: Can mount ø0.8–3.0mm / Use router bits in multiple stages to reduce running costs Spindle allowable rotational speed: 60,000rpm (recommended continuous use below 50,000rpm) Standard specifications: Bit ejection and breakage detection function, built-in compact dust collector Device external dimensions (approximate): 790W × 1140D × 1670H (including touch panel, excluding indicator lights) Device approximate weight: About 400kg
Price range
Delivery Time
Applications/Examples of results
Model for low-volume production of multiple varieties.
