LPKF ProtoLaser H4
Renewal! The world's first hybrid laser printed circuit board processing machine.
The hybrid-type laser circuit board processing machine has been renewed! It can carve out high-precision printed circuit board wiring in just a few minutes. 【Features】 ■ High-speed patterning with laser ■ Quick and clean drilling and contour cutting with drill motor ■ Compact and tabletop design ■ Laser class 1 ■ Compatible with all printed circuit board materials ■ Intuitive and user-friendly smart software *For more details, please refer to the catalog or feel free to contact us.
Inquire About This Product
basic information
■Maximum substrate and processing size (X/Y/Z): 310 mm x 230 mm x 8 mm ■Laser: 1064nm, 25~400 kHz, 20W ■Maximum spindle rotation speed: 100,000 RPM ■Tool exchange: Automatic exchange, 14 tools ■Minimum line/space: 100 µm/30 µm (depending on the substrate) ■Laser processing speed: 14 cm²/min (depending on the substrate) ■Device dimensions (W x H x D): 725 mm x 665 mm x 840 mm ■Weight: 125 kg (granite base) ■Power supply: 115 – 230 V, 50 – 60 Hz, 500 W *For more details, please refer to the catalog or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results

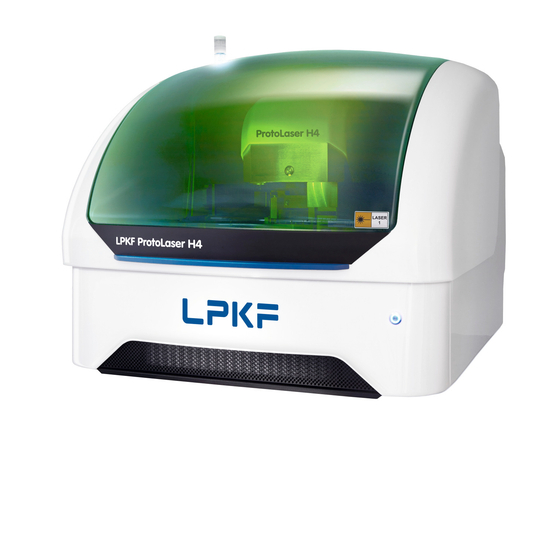

This is a laser system for prototype processing of printed circuit boards. It performs surface pattern processing with an IR fiber laser. Additionally, it is a hybrid system capable of drilling and contour cutting with a drill motor that operates at 100,000 RPM. The LPKF ProtoLaser H4 is a very compact tabletop laser PCB processing machine that can process materials ranging from FR4 to delicate RF boards, making it suitable for various applications.
Detailed information
-
Desktop laser printed circuit board processing machine
-
LPKF ProtoLaser sample
-
Laser-assisted resist removal
Line up（1）
| Model number | overview |
|---|---|
| LPKF ProtoMat S104 | Drill motor cutting type printed circuit board processing machine |
catalog（10）
Download All Catalogs
News about this product（1）
