UV Laser Circuit Board Processing Machine LPKF ProtoLaser U4

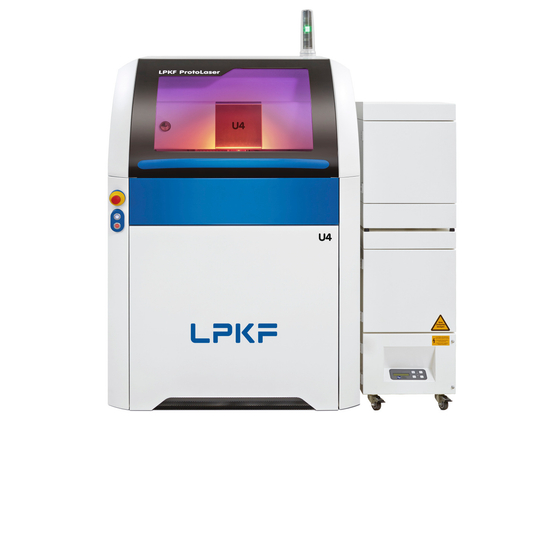

LPKF ProtoLaser U4
LPKF's UV laser circuit board processing machine that accommodates the most diverse materials.
The UV laser processing machine most recommended by LPKF! It can handle difficult-to-process materials like ceramics and flexible substrates that are challenging to drill. 【Features】 ■ Fine patterning with laser ■ Drilling and contour cutting of difficult materials ■ Low-power laser specialized for fine processing ■ Laser class 1 ■ Compatible with all types of printed circuit board materials ■ Intuitive and user-friendly smart software *For more details, please refer to the catalog or feel free to contact us. Brooks Japan Co., Ltd. Contact page: https://www.brux.jp/contact_request
Inquire About This Product
basic information
■Maximum processing size (X/Y/Z): 305 mm x 229 mm x 7 mm ■Laser: 355 nm, 25~300 kHz, 5.7 W ■Minimum line/space: 50 µm/20 µm (depending on the substrate) ■Laser processing speed: 5.5 cm²/min (depending on the substrate) ■Device dimensions (W x H x D): 910 mm x 1650 mm x 795 mm ■Weight: 350 kg ■Power supply: 230 V, 50 – 60 Hz, 1.5 kW *For more details, please refer to the catalog or feel free to contact us. Brooks Japan Co., Ltd. Contact page: https://www.brux.jp/contact_request
Price range
Delivery Time
Applications/Examples of results
This is a laser system for prototype processing of printed circuit boards. It can perform fine pattern processing, drilling, and contour cutting using UV lasers. It can be used for various applications, from FR4 to delicate RF boards and more.
Detailed information
-
Patterning, drilling, and contour cutting of polyimide substrates.
-
Alumina substrate
-
Laser-assisted resist stripping
Line up（5）
| Model number | overview |
|---|---|
| LPKF ProtoLaser R4 | Specialist in difficult-to-process materials LPKF ProtoLaser R4 |
| LPKF ProtoLaser U4 | Multicolor Material Compatible UV Laser Substrate Processing Machine |
| LPKF ProtoLaser H4 | Hybrid Laser Printed Circuit Board Processing Machine |
| LPKF ProtoMat S104 | Automatic Drill Motor Cutting Type Printed Circuit Board Processing Machine |
| LPKF ProtoMat E44 | Compact printed circuit board processing machine |
