High-frequency specialist LPKF ProtoMat S104

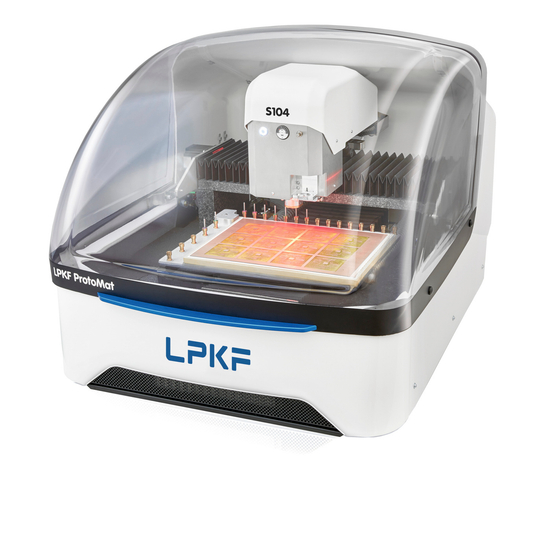

LPKF ProtoMat S104
Easy printed circuit board prototyping in-house and in the lab!
LPKF's printed circuit board processing machines enable prototype production of printed circuit boards in just a few minutes to a few hours. LPKF's diverse board processing machines cover a wide range of applications from analog to RF. 【Features】 ■ Top-class board processing machine with fully automatic operation ■ Equipped with a spindle motor that reaches up to 100,000 RPM ■ Automatic tool change with 20 tools ■ High-precision double-sided processing with mounted camera ■ Uniform processing with vacuum table ■ Convenient wizard function ■ Easy-to-use software *For more details, please refer to the catalog or feel free to contact us.
Inquire About This Product
basic information
■Maximum processing size (X/Y/Z): 229 mm x 305 mm x 8 mm ■Maximum substrate size (X/Y/Z): 250 mm x 330 mm x 26 mm ■Maximum spindle speed: 100,000 RPM ■Tool change: Automatic change, 20 tools ■Cutting width adjustment: Automatic ■Drilling speed: 100 holes/min ■Maximum speed (X/Y): 150 mm/s ■Device dimensions (W x H x D): 680 mm x 560 mm x 800 mm ■Weight: 95 kg (granite base) ■Power supply: 90 – 240 V, 50 – 60 Hz, 450 W *For more details, please refer to the catalog or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
You can easily prototype printed circuit boards within the company or lab.
Detailed information
-
Recommended for initial introduction! Consumable set
-
LPKF ProtoMat processing sample
-
Both-side pattern processing, hole drilling, and contour cutting!
