The industry's top model for prototype printed circuit board processing machines! From complex circuits to RF and high-frequency applications.

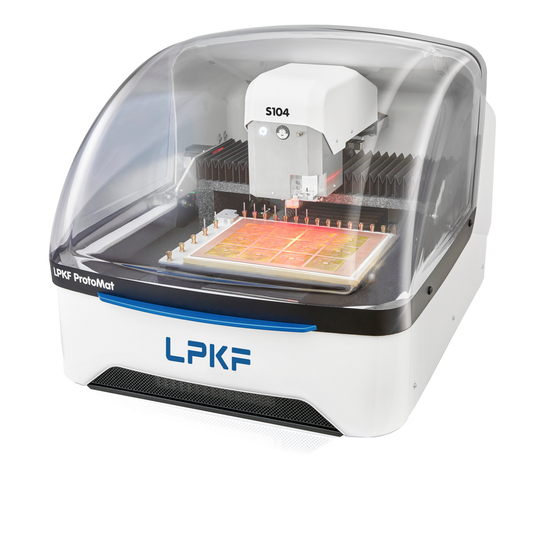

LPKF's printed circuit board processing machines make it possible to prototype printed circuit boards in just a few minutes to a few hours. Professional PCB prototyping for prototypes. 【Features】 ■ Supports applications from circuits to RF and high-frequency applications ■ Equipped with a spindle motor with a maximum of 100,000 RPM ■ High-precision double-sided processing with an integrated camera ■ Convenient wizard function ■ Easy-to-use software *For more details, please refer to the catalog or feel free to contact us. Brooks Japan Co., Ltd. Contact page: https://www.brux.jp/contact_request
Inquire About This Product
basic information
■Maximum processing size (X/Y/Z): 229 mm x 305 mm x 8 mm ■Maximum substrate size (X/Y/Z): 250 mm x 330 mm x 26 mm ■Maximum spindle speed: 100,000 RPM ■Tool change: Automatic, 20 tool holders ■Cutting width adjustment: Automatic ■Minimum line/space: 100 µm/100 µm (depending on substrate) ■Drilling speed: 100 holes/min ■Maximum speed (X/Y): 150 mm/s ■Device dimensions (W x H x D): 680 mm x 560 mm x 800 mm ■Weight: 95 kg (granite base) ■Power supply: 100 – 240 V, 50 – 60 Hz, 250 W *For more details, please refer to the catalog or feel free to contact us. Brooks Japan Co., Ltd. Contact page: https://www.brux.jp/contact_request
Price range
Delivery Time
Applications/Examples of results
You can easily prototype printed circuit boards within the company or lab.
Detailed information
-
Recommended for initial introduction! Consumable set
-
LPKF ProtoMat processing sample
-
Both sides pattern processing, hole drilling, and contour cutting!
Line up（2）
