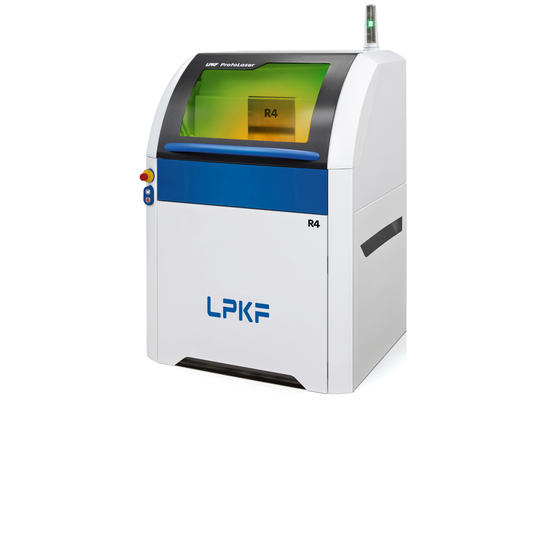

Specialist in difficult-to-process materials LPKF ProtoLaser R4
LPKF ProtoLaser R4
Specialist in difficult-to-process materials: LPKF's picosecond laser circuit board processing machine.
The laser processing with the least thermal impact at LPKF! Compatible with difficult-to-process materials such as thin films and transparent materials. 【Features】 ■ Picosecond laser ■ Laser ablation with no thermal impact ■ Laser specialized in difficult and fine processing ■ Laser Class 1 ■ Compatible with all printed circuit board materials ■ Intuitive and smart software for easy use *For more details, please refer to the catalog or feel free to contact us. Brooks Japan Co., Ltd. Contact page: https://www.brux.jp/contact_request
Inquire About This Product
basic information
■Maximum processing size (X/Y/Z): 305 mm x 229 mm x 7 mm ■Laser: 515 nm, 50~500 kHz, 8 W ■Minimum line/space: 35 µm/20 µm (depending on the substrate) ■Laser processing speed: 5.5 cm²/min (depending on the substrate) ■Device dimensions (W x H x D): 910 mm x 1650 mm x 795 mm ■Weight: 390 kg ■Power supply: 230 V, 50 – 60 Hz, 2 kW *For more details, please refer to the catalog or feel free to contact us. Brooks Japan Co., Ltd. Contact page: https://www.brux.jp/contact_request
Price range
Delivery Time
Applications/Examples of results
This is a laser system for prototype processing of printed circuit boards. It is a specialist in difficult and fine processing equipped with a picosecond laser, achieving laser ablation with minimal thermal impact, the best among LPKF's offerings.
Detailed information
-
Alumina substrate
-
Micro drilling process
Line up（5）
| Model number | overview |
|---|---|
| LPKF ProtoLaser R4 | Specialist in difficult-to-process materials LPKF ProtoLaser R4 |
| LPKF ProtoLaser U4 | UV Laser PCB Processing Machine for Various Materials |
| LPKF ProtoLaser H4 | Hybrid Laser Printed Circuit Board Processing Machine |
| LPKF ProtoMat S104 | Automatic drill motor cutting type printed circuit board processing machine |
| LPKF ProtoMat E44 | Compact printed circuit board processing machine |
