The long-awaited lightweight model of the "TDOT 7 GREEN Series" green LiDAR system for drones that can measure wet ground.

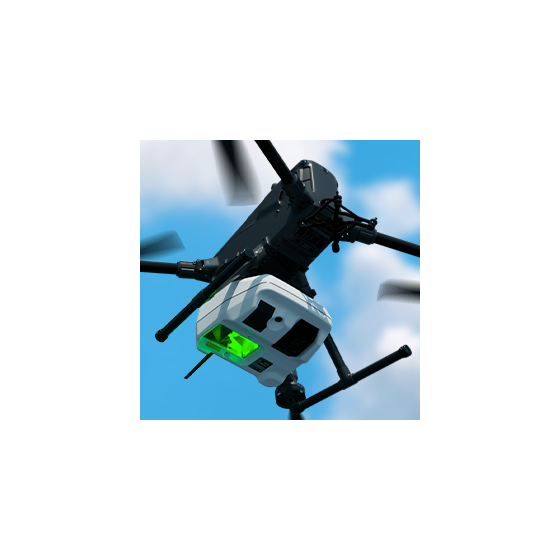

The high-performance green laser module of TDOT 7 GREEN remains unchanged, and the ultra-lightweight GREEN LiDAR SYSTEM "TDOT 7 GREEN LITE" has been born, thoroughly lightweight and compact. It achieves a level of agility that was difficult to attain with previous green LiDAR-equipped devices, enabling rapid responses to a wider variety of sites. In particular, it also supports mounting and operation on the DJI "Matrice 350 RTK," which has been highly requested by users, further expanding the flexibility of its implementation. The LITE model, which balances high precision and mobility, elevates the possibilities of drone surveying to the next stage.
Inquire About This Product
basic information
Size (approx.) W260 x D250 x H150mm Weight (approx.) 2.9kg Maximum measurement distance ≧10%: 430m / ≧100%: 1400m Minimum measurement distance 2.5m Measurement accuracy (1σ) Strong echo 4mm / Weak echo 15mm Beam divergence angle 1.5mrad Laser wavelength 532nm Emission rate 160,000Hz Field of view 120° Scan speed 40Hz / 80Hz Number of echoes 6 Laser class - Distance to scan target over 40m FULL: class 3R - Distance to scan target between 25m and 40m MEDIUM: class 3R - Distance to scan target under 25m LOW: class 1 Depth measurement performance Best conditions: Reflectivity = 0.4 @ height 50m 1.43 Secchi Operating temperature range 10 to 40℃ (must not condense) ● INS Specifications Position accuracy 5mm Heading 0.03° Pitch/Roll 0.006° Speed 0.01m/second *Accuracy after post-processing.
Price range
Delivery Time
Applications/Examples of results
Please take a look at our achievements here.
catalog（3）
Download All Catalogs
Company information
Amuse One Self was established in 2011 and independently develops hardware and software related to 3D measurement necessary for ICRT (Information and Communication Technology + Information and Robot Technology). In particular, since successfully commercializing the first drone-mounted laser scanner in Japan in 2013, the company has been engaged in a wide range of research and development related to the use of industrial drones, including providing cloud solutions for high precision in i-Construction and immediate surveying on-site. In recent years, it has also focused on establishing technologies for safe drone operation and accident prevention from both hardware design and education perspectives.
