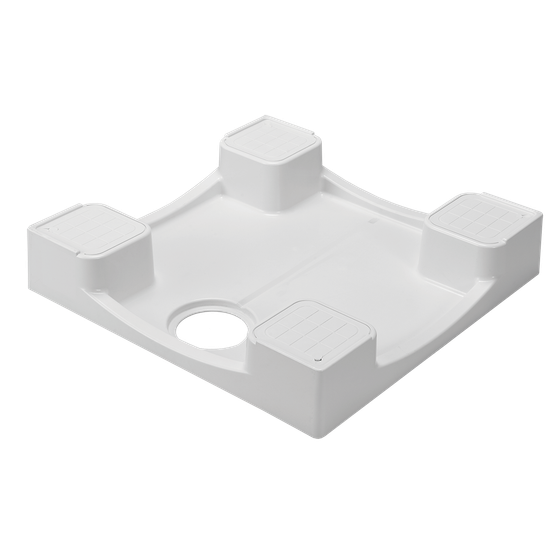

Environmentally friendly waterproof pans that contribute to CO₂ reduction and ESG.
- A New Form of Building Materials Aimed at a Decarbonized Society - - This is the industry's first environmentally friendly sustainable plastic used in PP waterproof pans. By adopting recycled materials that allow for carbon footprint calculations at the material procurement stage for PP, the main raw material of the waterproof pan, it is possible to reduce approximately 3 kg of CO₂ per unit. *The carbon footprint refers to the total amount of greenhouse gases emitted through the production and consumption of goods and services, expressed as a CO₂ (carbon dioxide) equivalent. For example, if TPD640ECO25 is adopted for a building with 300 units, it is possible to reduce approximately 900 kg of CO₂. This is equivalent to the CO₂ emissions of 900,000 plastic bottles.
Inquire About This Product
basic information
【Specifications】 ○Model Number: TPD640ECO25 ○Dimensions: W640×D640×H120 ○Effective Internal Dimensions: W609×D609 ○Material: PP ○Drainage Outlet Position: Center (C) ○Weight: Approximately 3.2kg ○Load Capacity: 200kg ○Color: New White, Ivory White, Techno Black ○Accessories: Screws (5.2×97)×4, Screw Caps×4 Installation Specification Document ○Model Number: TPW640ECO25 ○Dimensions: W640×D640×H120 ○Effective Internal Dimensions: W609×D609 ○Material: PP ○Drainage Outlet Position: Center (C) ○Weight: Approximately 3.2kg ○Load Capacity: 200kg ○Color: New White, Ivory White, Techno Black ○Accessories: Screws (5.2×97)×4, Screw Caps×4 Guard for Safeguard Pan×(0–4) Installation Specification Document *Drain trap is sold separately.
Price information
TPD640ECO25-CW2/CW1 19,500 yen TPW640ECO25-CW2-GN/CW1-GN 19,500 yen * The techno black color is open price for all. * The techno black color can be made to order from lot 200.
Delivery Time
※Please contact us.
Applications/Examples of results
For more details, please contact us or download the catalog.
Detailed information
-
TPD640ECO25
-
TPW640ECO25
Line up（6）
| Model number | overview |
|---|---|
| TPD640ECO25-CW2 | New White |
| TPD640ECO25-CW1 | Ivory White |
| TPD640ECO25-CB1 | Techno Black |
| TPW640ECO25-CW2-GN | New White / No Guard |
| TPW640ECO25-CW1-GN | Ivory White / No Guard |
| TPW640ECO25-CB1-GN | Techno Black / No Guard |
catalog（2）
Download All Catalogs
CAD data（2）
| Model number | overview | File |
|---|---|---|
| Environmentally friendly waterproof pan "Easy Pan TPD640ECO25" |
|
|
| Environmentally Friendly Waterproof Pan "Safeguard Pan TPW640ECO25" |
|
