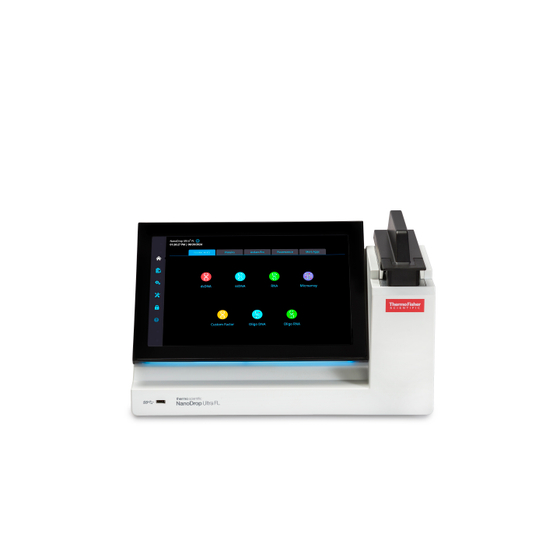

NanoDrop Ultra Micro Spectrophotometer
Thermo Scientific
The latest model of the NanoDrop series! Intuitive operation with a larger touchscreen.
The Thermo Scientific NanoDrop Ultra micro-volume spectrophotometer can quantify the concentration of DNA, RNA, and proteins in samples as small as 1 μL. It is equipped with Thermo Scientific Acclaro sample intelligence technology, which automatically detects contamination within the sample and displays the results after automatic correction. Furthermore, it can detect not only proteins, phenols, and guanidine hydrochloride in DNA and RNA but also contamination of ssRNA in dsDNA and dsDNA in ssRNA. This technology allows for accurate assessment of the sample's condition, enabling downstream experiments to proceed effectively. Measurements can be performed using the device alone or controlled from a PC. The Acclaro Pro (AP) model can measure high-concentration samples with an accuracy of less than 5%. - The built-in camera monitors for bubbles and abnormalities in the sample. - It is possible to set the measurement to start automatically when the arm is lowered. - Cuvette measurements are also possible (available only in the NanoDrop UltraC model).
Inquire About This Product
basic information
Measurement wavelength range: 190~850 nm Absorbance measurement range: Base: 0.02~550 Abs (equivalent to 10 mm) Cuvette: 0.004~1.5 Abs Detection limit (dsDNA): Base: 1.0 ng/μL Cuvette: 0.2 ng/μL Detection upper limit (dsDNA): 27,000 ng/μL Minimum sample volume: 1 μL Absorbance measurement accuracy: 3% (0.97 A, 302 nm) Size and weight: W320 × D180 × H280 mm 4.1 kg Power supply: 100 ~240 V 50~60 Hz 18 W
Price information
Price range
P5
Delivery Time
Applications/Examples of results
DNA quantification, RNA quantification, protein quantification, absorbance measurement, turbidity measurement.
Line up（4）
| Model number | overview |
|---|---|
| NDULTRAGL | NanoDrop Ultra Micro Spectrophotometer |
| NDULTRACGL | NanoDrop UltraC Micro Spectrophotometer |
| NDULTRAAPGL | NanoDrop Ultra AP Micro Spectrophotometer |
| NDULTRACAPGL | NanoDrop UltraC AP Micro Spectrophotometer |
