[Pump Restoration] Belzona 1311: High-wear-resistant, corrosion-resistant repair compound specialized for fluid wear.
Super Metal Belzona 1111
Rebuilding the erosion and corrosion damage of pump casings and impellers. A high-strength ceramic putty suitable for countermeasures against pitting in heat exchangers.
A composite material with ceramic filling for rebuilding and protecting damaged metal components in fluid environments. It exhibits high-strength adhesion, corrosion resistance, and heat resistance, significantly extending the lifespan of slurry pumps and valve casings. It can be easily applied by hand, reducing recovery time. 【Features】 ■ Strongly protects the base material from erosion and corrosion ■ Excellent wear resistance suitable for slurry environments ■ Quick equipment recovery with easy application that requires no machining ■ Maintains resistance to temperature changes up to **200℃** and various chemicals [Demo and Sample Distribution] If you would like a demo or sample, please fill out your intended use and conditions in the "Contact Us" section below and send it to us. *Please note that we may decline to respond based on certain conditions.
Inquire About This Product
Related Videos
basic information
[Instructions] □ Surface Preparation: Remove rust from the corroded areas of the metal using blasting or grinding, and roughen the surface. □ Degreasing Cleaning: Remove moisture, oil, and dirt using a cleaning agent. □ Mixing: Take the main agent and hardener in the specified mixing ratio on a board made of plastic or similar material and mix them thoroughly to avoid color unevenness. □ Application: Initially apply to the prepared surface by rubbing it in, then apply until the desired thickness is achieved. [Product Information] □ Form: Paste "after mixing" □ Color: Gray □ Packaging: 1 kg "main agent and hardener set", 2 kg "main agent and hardener set" □ Mixing Ratio (by weight): Main agent 5 : Hardener 1 □ Curing Time: 20 hours at 25°C [Product Properties] □ Adhesive Strength (Iron): 19.2 MPa □ Heat Resistance: 200°C (dry) □ Shelf Life (unopened): 5 years
Price information
Please contact us.
Price range
P2
Delivery Time
P2
Applications/Examples of results
- Piping - Various flanges - Pump casing - Pump parts - Pump impeller - Shaft - Tank - Tank nozzle - Screw thread - Bearing housing - Engine block
Detailed information
-

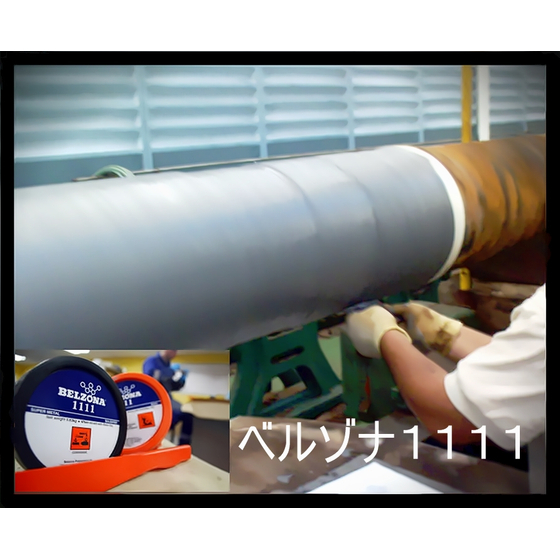

Pipe repair: Since no flame is required, it can be safely used in areas with less thickness.
-
Shaft repair: For small ones, processing can be done using a lathe, and for large ones, repair is possible using a molding method combined with release agent 9411.
-
Flange installation: The flange surface can also be easily repaired using a jig.
-
When bonding the plate: It can be used as a high-strength adhesive during the bonding of the piping reinforcement plate.
-
Pump parts repair: Repairs that require precision, such as the gland section, can be accommodated as machining is possible.
