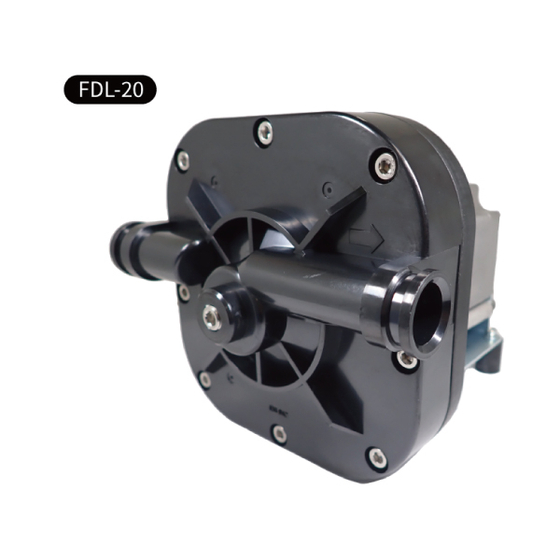

●Small diaphragm pump "FDL-20" [Liquid specification]
Model number FDL-20 *AC/DC specifications available
The FDL-20 is a small diaphragm pump for liquids, compatible with AC/DC, with a maximum operating pressure of 400 kPa G and a self-priming height of 3 m.
The small diaphragm pump FDL-20 is a liquid diaphragm pump compatible with AC/DC! Compact and lightweight, it significantly reduces pulsation due to its multi-chamber diaphragm design. The wetted materials are based on highly corrosion-resistant thermoreversible resins and thermoreversible elastomers, and can be changed to other materials. It comes standard with variable speed functionality (external control) and alarm detection features (overload, overvoltage, undervoltage, overheating). A variety of options are available, including AC motors (single-phase and three-phase), connection positions (orientation), pressure switches, built-in relief valves, external volume adjustment units, anti-vibration bases, and power cords (AC). **Features of the small diaphragm pump FDL-20** - Equipped with a brushless motor for DC operation - Variable speed operation and alarm output are standard features - Compact and lightweight, making it easy to integrate into equipment - Available in AC/DC specifications - Self-priming: 3m (suction lift) - Highly corrosion-resistant materials - Variable speed functionality (standard) - Alarm detection functionality (standard) - Options can be changed to suit equipment specifications - Made in Japan with high performance and reliability *Please start by downloading the PDF materials! For more details, feel free to contact us via email or phone with any inquiries!*
Inquire About This Product
basic information
【Specifications (FDL-20)】 ■ Maximum flow rate: 20.0L/min or more ■ Suction lift (self-priming): 3m ■ Maximum pressure: 400kPaG (0.4MPa) ■ Connection diameter: R1/2 (standard) ■ Suction temperature range: 0℃ to 70℃ ■ Operating ambient environment: Temperature 0 to 40° / Humidity RH 85% or less ■ Motor power supply voltage: DC24V (standard) * AC specifications (100/110V/200/220V) can be changed ■ External operation control: External input voltage DC0 to 5V / PWM control / External volume adjustment ■ Rated current: 6A ■ Operating speed (RPM): 1900RPM ■ Rated output: 125W ■ Insulation class: E ■ Weight: 2.5kg * Please first use the PDF document download! For more details, feel free to contact us by email or phone with any questions!
Price information
It varies depending on the quantity, so please feel free to contact us. We are always happy to provide a quote!
Price range
Delivery Time
※It varies depending on the time, so please feel free to contact us.
Applications/Examples of results
【Main Uses】*Example of Introduction ■ Sampling-related ■ Liquid delivery-related ■ Various circulation pump systems, etc. *Please start by downloading the PDF materials! For more details, feel free to contact us by email or phone with any questions!
