Large-scale high-speed molding FDM method 3D printer

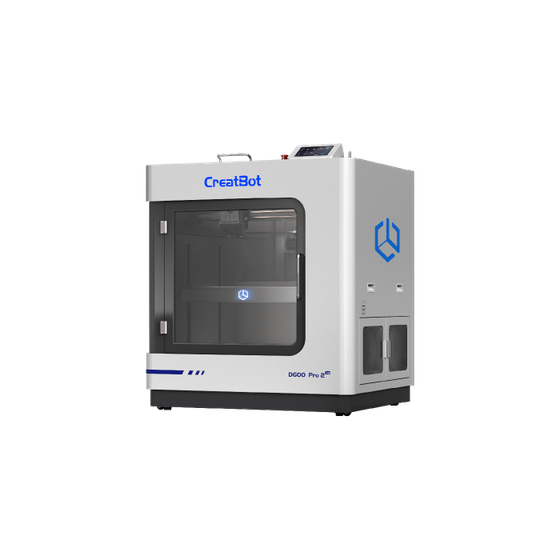

The CreatBot D600 Pro2 HS is a large FDM (Fused Deposition Modeling) 3D printer that features an impressive build size of 600×600×600mm and a high-speed printing capability of up to 300mm/s. Equipped with Klipper firmware for enhanced speed and a stable temperature management system (with a heat chamber that reaches up to 70℃ and a nozzle that can reach up to 420℃), it supports a wide range of materials, from general-purpose resins to engineering plastics like PA and PC, as well as high-strength filaments containing carbon or glass fibers, enabling stable and high-speed output of large models. It contributes to increased productivity, from prototyping and jigs to the manufacturing of final parts.
Inquire About This Product
basic information
Forming method: FDM method (Fused Deposition Modeling) Maximum print size (XYZ): 600 × 600 × 600 mm Maximum nozzle temperature: 420℃ Maximum chamber heater temperature: 70℃ Maximum print speed: 300 mm/s Number of nozzles: 2 Minimum layer pitch: 0.05 mm Compatible filament diameter: 1.75 mm Body size: 1080 × 920 × 1245 mm
Price information
Price range
P5
Delivery Time
P4
Applications/Examples of results
●Overwhelming large build size and high-speed printing Maximum build size: 600mm × 600mm × 600mm Maximum print speed: 300mm/s Adopts Klipper to accelerate computation and control with two boards. ●Excellent temperature management and stability Equipped with a heat chamber capable of raising the internal temperature up to 70℃ to suppress warping during large prints. Features an internal heater for materials that can raise the temperature up to 70℃ to prevent filament moisture absorption. Maximum nozzle temperature: 420℃ (direct drive extruder) to accommodate engineering plastics. A highly rigid all-steel chassis and a unique mechanism called **"Z magic box"** that absorbs vibrations ensure high-quality prints even during high-speed printing. ●High-precision drive components and safety features High-precision drive using linear guide rails and stepper motors with built-in encoders. 25-point auto-leveling function to enhance table adhesion. Features such as filament run-out sensor and power recovery function to support long-duration printing.
Line up（3）
| Model number | overview |
|---|---|
| D1000 HS | Shaping area: 1000×1000×1000 [mm] |
| P800 (Pellet-type 3D printer) | Forming area: 800×800×800 [mm] |
| PEEK-250 (Compatible with Super Engineering Plastics) | Forming area: 250×250×300[mm] |
