High-performance, space-saving, fanless design edge AI embedded computer.

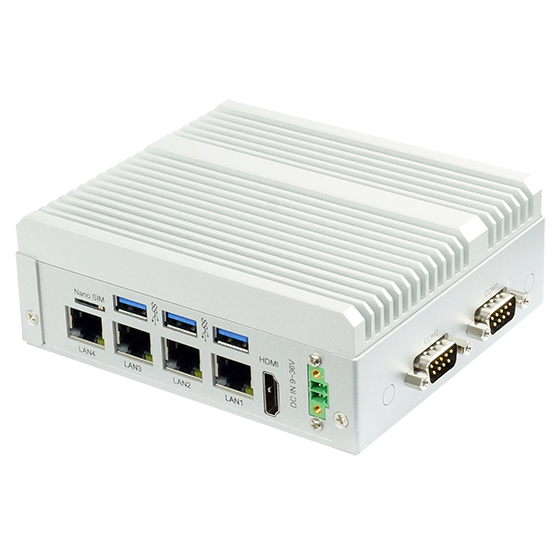

The FOX 2I130DW is a high-performance embedded computer that adopts a fanless design in a compact chassis measuring just 132.5 (width) × 112.45 (depth) × 48 (height) mm. It is equipped with 13th and 12th generation Intel Core Raptor Lake-U / Alder Lake-U (i7 / i5 / i3) processors, delivering excellent computational performance for edge AI applications. It offers a rich array of I/O interfaces suitable for industrial applications: HDMI ×1 2.5GbE LAN ports ×4 (supporting high-speed networks) USB 3.2 ports ×3 COM ports ×2 (for industrial communication and control) Additionally, by utilizing the M.2 slot, it supports Wi-Fi 6 and 4G / 5G communication modules, enabling wide coverage and real-time data transmission. It is ideal for AIoT and edge gateway applications. The FOX 2I130DW, which condenses high performance into a robust and ultra-compact chassis, is an ideal solution for applications that require advanced computational processing in harsh environments.
Inquire About This Product
basic information
- 13th Generation Intel Core Raptor Lake-U: i7 / i5 / i3 / Pentium - 12th Generation Intel Core Alder Lake-U: i7 / i5 / i3 / Celeron - DDR5 SODIMM ×1 (supports up to 32GB) - HDMI ×1 (supports multi-display) - Intel 2.5GbE LAN ports ×4 - USB 3.2 ×3 - Serial port (COM) ×2 - M.2 M key ×1 (supports NVMe SSDs, etc.) - M.2 B key ×1 (supports LTE / 5G modules, etc.) - Nano SIM slot ×1
Price range
Delivery Time
Applications/Examples of results
Appearance inspection Image analysis Smart transportation system Smart factory Intelligent processing in the medical field
Detailed information
-
Built-in SBC: 2I130DW
catalog（1）
Download All Catalogs
Company information
Our company is a specialized trading company that deals with various embedded products such as edge AI, industrial computers, single-board computers (SBCs), and image capture boards. We handle embedded systems equipped with the latest Intel CPUs (such as Intel Elkhart Lake Atom, Tiger Lake, and Raptor Lake), which are essential for building FA, IoT, and AI edge systems.
