Surface Mount Pushbutton Switches
● Rich circuit configuration By incorporating two 2-circuit switches, a rich circuit configuration can be achieved through external wiring. ● Excellent contact reliability The contact part has a self-cleaning mechanism and employs reliable twin contacts for secure connections. ● Dedicated for printed circuit boards The terminal pitch is all in inch sizes (multiples of 2.54 mm). It can be continuously mounted on printed circuit boards with IC pitch. With LED: LED illumination is possible even in a compact shape. ● For microcurrent (gold-plated contact type) When used in harsh environmental conditions (such as sulfur gas), there is a disadvantage of easily forming a film on the contact surface that hinders contact due to changes over time. Especially when used in low-level areas known as dry circuits, please choose the gold-plated type.
Inquire About This Product
basic information

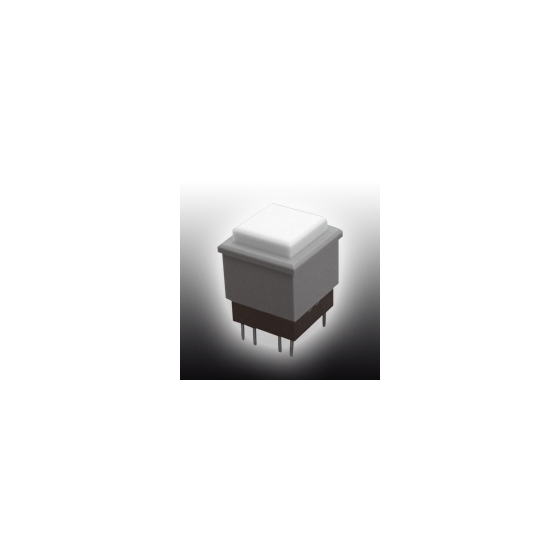

Circuit configuration: 2PST×2 Rated: 5 VDC 100 mA Switch characteristics: On - (On) Terminal type: Through hole Remarks: 2-pole single throw × 2 sets built-in, non-illuminated type *The photo shows an image with a colored button and mounting frame attached to the main unit. *The colored button and mounting frame are sold separately, so please order them together with the main unit if needed. *For the same series of single pole single throw type, click here.
Price range
Delivery Time
Applications/Examples of results
Disaster prevention wireless, measuring instruments, industrial equipment, etc.
