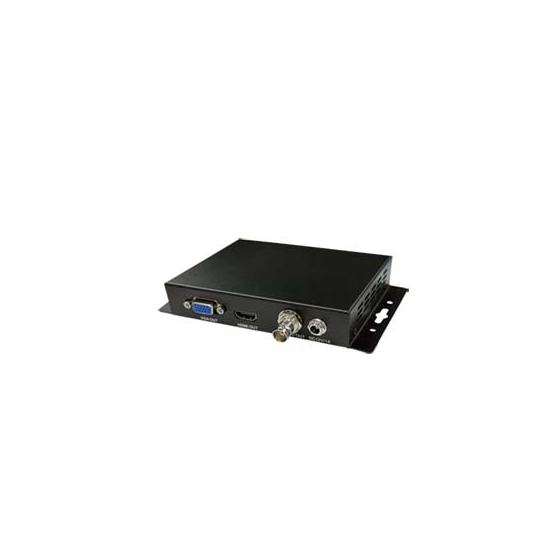

Video converter ACT-VF03 for converting AHD/HD-TVI/HDCVI/composite to 3G/HD-SDI, HDMI, VGA.
The JACT-VF03 is a video converter that converts AHD/HD-TVI/HDCVI/composite video signals to output 3G/HD-SDI, HDMI, and VGA. The output signals SDI/HDMI/VGA can be output simultaneously.
Inquire About This Product
basic information
The JACT-VF03 is a video converter that converts and outputs AHD/HD-TVI/HDCVI/composite video signals to 3G/HD-SDI, HDMI, and VGA (with input signal loop output). - Input resolution: AHD/HD-TVI/HDCVI: 720p/1080p 25/30Hz, 4MP 15/25/30Hz, 5MP 12.5/20Hz, 8MP (4K) 12.5/15Hz; Composite: NTSC (60Hz)/PAL (50Hz). *The input signal is automatically recognized from one of these options. - Output resolution: SDI: 720p 50/60Hz, 1080i 50/60Hz, 1080p 25/30/50/60Hz YUV 4:2:2; HDMI: 720p 50/60Hz, 1080p 50/60Hz; VGA: 720p 50/60Hz, 1080p 50/60Hz. *Output resolution and frame rate can be switched using a switch. - If the input signal is lost, the device will send a black screen and display "CONNECTION LOST." - Power adapter included.
Price range
P3
Delivery Time
※The delivery date may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
The JACT-VF03 is a video converter that converts and outputs AHD/HD-TVI/HDCVI/composite video signals to 3G/HD-SDI, HDMI, and VGA (with input signal loop output). It is effective for displaying camera video from AHD/HD-TVI/HDCVI/composite on monitors compatible with HDMI or VGA inputs, or for inputting to recorders for 3G/HD-SDI.
