Socket LGA1700, 14th/13th generation i (Raptor Lake/Alder Lake), 2xDDR4 up to 64GB

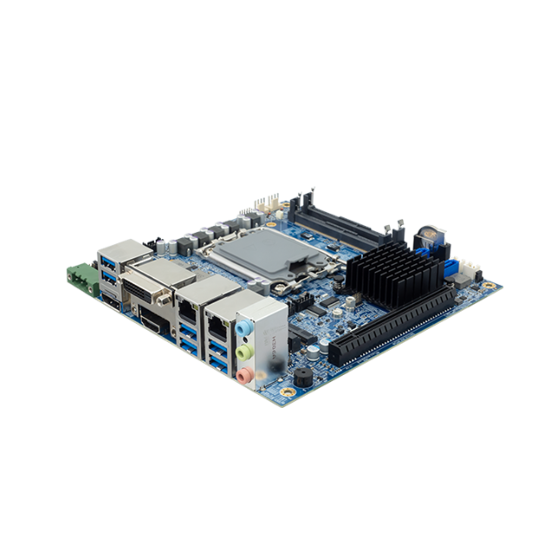

【Protech BM-D226 Features】 ■Dimensions: 170mm x 170mm ■Compatible with 14th/13th/12th generation i9/i7/i5/i3 Raptor Lake/Alder Lake processors ■Supports independent displays with a maximum resolution of 4K via 1 x DP, 1 x HDMI, and 1 x DVI-D ■2xDDR4 up to 64GB, Q670E/H610E ■Expansion Slots ・1 x PCIe (x16) ・1 x SIM slot for M.2 B-Key (Top side) ・1 x PCIe M.2 M-Key PCIeX4 (Gen.4) (2280 only) (NVME) (Q670E only) (bottom side) ・1 x PCIe M.2 B-Key PCIe (x1) / SATA (2242/3042/3052) / USB 2.0 ・1 x PCIe M.2 E-Key PCIe (x1) / USB (2230) ■4 x COM, 2 x LAN, 8 x USB
Inquire About This Product
basic information
Specifications ■CPU: 14th/13th/12th generation i9/i7/i5/i3 Raptor Lake/Alder Lake processors ■Chipset: H610E/Q670E ■Memory: 2xDDR4, up to 64GB ■Ethernet: 3 x 2.5 GbE LAN, 1 x GbE LAN ■Interfaces: 4 x COM, 2 x LAN, 8 x USB, 1 x DP, 1 x HDMI, 1 x DVI-D, 2 x SATAIII ■Operating temperature: 0°C ~ 60°C ■Dimensions: 170mm x 170mm
Price range
Delivery Time
※The delivery time may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
Factory and Building Automation / Control Systems / Communication Systems / Monitoring Systems
Line up（1）
| Model number | overview |
|---|---|
| KINO-ADL-H611-R10 | Mini-ITX SBC supports LGA1700 Intel 12th/13th/14th Generation Core i9/ i7/ i5/i3, Pentium and Celeron processor, DDR4, Triple independent displays, quad LAN, USB 3.2, SATA 6Gb/s and RoHS |
