Standard equipment includes various alarm displays using a combination of signal towers and buzzers!

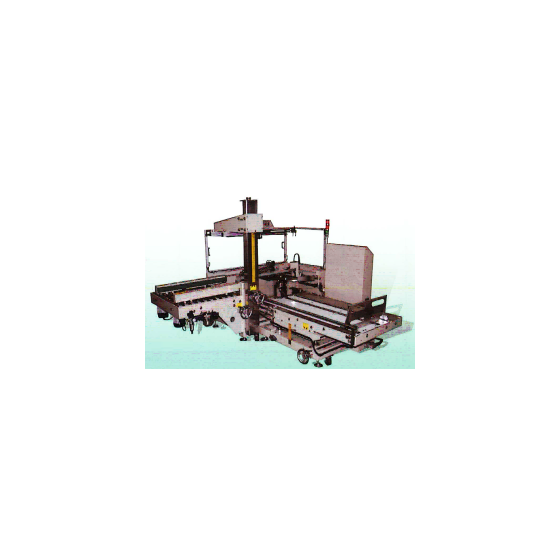

Introducing the box-making machine 'IL-801C' handled by Shirai Co., Ltd. This product is a box-making machine with a magazine chain conveyor type, and it can increase the number of cardboard sheets by extension. It also features high operability and safety, with easy setup changes using handle adjustments. It comes standard with a full exit sensor connection terminal. 【Features】 ■ High operability and safety (easy setup changes with handle adjustments) ■ Standard equipped with various alarm displays through a combination of signal tower and buzzer (low tape, vacuum failure, tape application error, stagnation, motor overload) ■ Option to choose L or R type according to the case opening direction ■ Standard equipped with a full exit sensor connection terminal (sensor is optional) ■ Ability to increase the number of cardboard sheets by extension *For more details, please refer to the related links or feel free to contact us.
Inquire About This Product
basic information
【Specifications (Partial)】 ■Machine dimensions: Overall width 2,200 × Overall length 2,240 × Overall height 1,690 mm ■Machine weight: Approximately 650 kg ■Tape width: 50 mm (75 mm width is optional) ■Processing capacity: 12 cases/min ■Air consumption: 350 Nl/min ■Power supply: Single-phase 100V / Three-phase 200V (50/60Hz) *For more details, please refer to the related links or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Materials Used (Example)】 ■OPP Tape ■Craft Tape *For more details, please refer to the related links or feel free to contact us.
