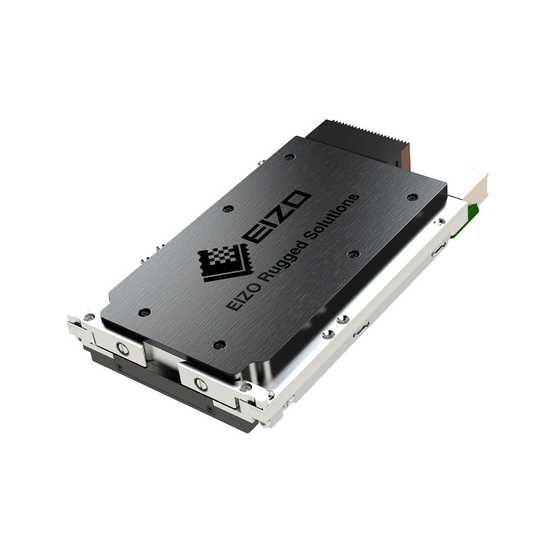

SOSA-aligned 3U VPX graphics and GPGPU card (NVIDIA RTX PRO 5000 Blackwell GPU)
The Condor GR5SL-B5000 is a robust 3U OpenVPX video graphics and GPGPU card equipped with the advanced NVIDIA RTX PRO 5000 Blackwell GPU. It supports ECC-enabled 24 GB GDDR7 graphics memory and PCI Express Gen 5 for the first time, significantly improving data transfer speeds and performance per watt. The GPU features 10,496 CUDA cores, 320 Tensor cores, and 80 RT cores, delivering exceptional performance for AI-accelerated data processing and real-time situational analysis. It also includes a 9th generation NVENC encoder and a 6th generation NVDEC decoder that support 4:2:2, providing advanced video compression and playback capabilities. Additionally, it supports NVIDIA GPUDirect RDMA, greatly reducing data transfer latency. Available in both conduction cooling (VITA 48.2) and airflow-through (VITA 48.8) variations, it minimizes performance degradation at high temperatures.
Inquire About This Product
basic information
Product Category: Embedded GPU Card Form Factor: 3U VPX Cooling Method: Conduction Cooling (VITA 48.2) / AFT (VITA 48.8) System Interface: PCIe Gen 5 Graphics Processor: NVIDIA RTX PRO 5000 Blackwell GPU Graphics Memory: 24 GB GDDR7 (with ECC) Number of CUDA Cores: 10,496 Number of Tensor Cores: 320 Number of RT Cores: 80 AI Performance (FP4): Up to 1,824 TOPS Supported APIs/Technologies: CUDA, OpenCL, GPUDirect RDMA Hardware Encode/Decode: H.265, H.264, AV1 Supported OS: Windows or Linux (x86) Operating Temperature (Card Edge): -40°C to 85°C (CC4) Power Consumption: 90W to 150W Vibration Resistance: 0.1 g²/Hz Shock Resistance: 40 g Humidity: 95% (non-condensing)
Price range
Delivery Time
Applications/Examples of results
Military Surveillance Unmanned Aerial Vehicle Navy Intelligence, Surveillance, and Reconnaissance Embedded Systems
