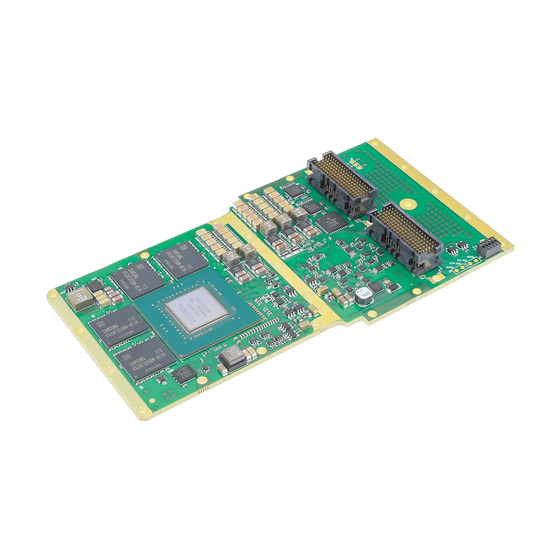

Embedded XMC graphics & GPGPU card equipped with NVIDIA RTX PR 500 Blackwell GPU.
The Condor NVB500xX is a robust XMC video graphics and GPGPU card. GPU: Equipped with the advanced NVIDIA RTX PRO 500 Blackwell GPU. Memory: Supports 6GB of ECC-enabled GDDR7 graphics memory and a 128-bit memory interface. Features: NVIDIA Blackwell, the first architecture to support GDDR7, achieves significant improvements in bandwidth, enhanced signal integrity, and reductions in energy consumption and power usage. Applications: These features make it ideal for demanding high-performance computing environments. Output: Supports three DisplayPort++/DVI video outputs. This card is a high-performance embedded system solution that leverages next-generation memory technology and is equipped with the NVIDIA RTX PRO 500 Blackwell GPU. It has 1,792 CUDA cores, excelling in AI processing and real-time analytics. It enables high-speed data transfer with PCIe Gen 5 and GPUDirect RDMA, compatible with VPX systems.
Inquire About This Product
basic information
Interface: Supports XMC 1.0, XMC 2.0, XMC+, and 8-lane PCIe Gen 5 GPU & Memory: Equipped with NVIDIA RTX PRO 500 Blackwell GPU and 6GB GDDR7 graphics memory (128-bit) with ECC support GPGPU Performance: Features 1,792 CUDA cores, 56 Tensor cores, and 14 RT cores, supporting CUDA-X and OpenCL, etc. Includes 9th generation NVENC (4:2:2 support) and 6th generation NVDEC, as well as GPUDirect RDMA Video Output: Three DisplayPort++/DVI outputs Robustness: Operates under strict temperature conditions compliant with MIL-STD-810 (e.g., -40°C to 85°C with conduction cooling) High vibration and shock resistance (0.1 g²/Hz, 40 g) Software: Supports DirectX12, OpenGL 4.6, Vulkan 1.4 on Windows and Linux (x86) Power Consumption: 35W to 60W
Price range
Delivery Time
Applications/Examples of results
Military Avionics Surveillance Unmanned Aerial Vehicle Navy Intelligence, Surveillance, and Reconnaissance (ISR) Embedded Systems
