SOSA-aligned 3U VPX graphics and GPGPU card equipped with NVIDIA RTX 2000 Ada generation.

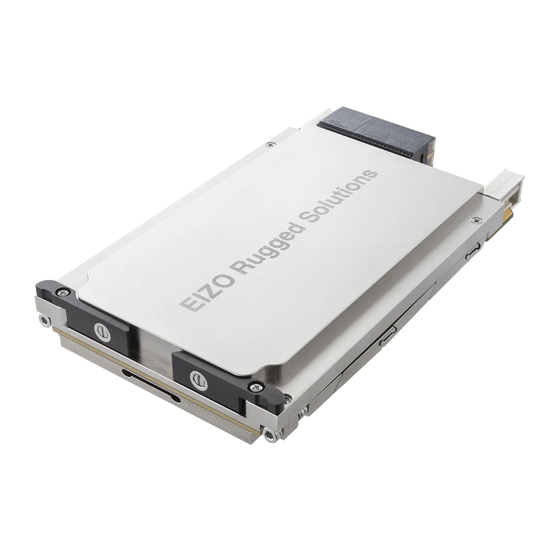

The Condor GR5S-AD2000 is a robust 3U OpenVPX standard video graphics/GPGPU processing card equipped with an NVIDIA RTX 2000 GPU (Ada Lovelace). Performance: It features 3,072 CUDA cores, 96 Tensor cores, and 24 RT cores, providing high efficiency and responsiveness for edge computing and data-intensive tasks. Memory: It is equipped with 8 GB of GDDR6 graphics memory with ECC (Error Correction Code), ensuring high reliability. Connectivity: It supports PCI Express Gen 4 connections (x4, x8, x16 lanes) and supports GPUDirect RDMA, significantly reducing data transfer latency. Cooling: Both air-cooled and conduction-cooled variations are available, offering robustness that meets the VITA 47.3 design specifications.
Inquire About This Product
basic information
Form Factor/Cooling: 3U VPX Form Factor. Supports 1" pitch conduction cooling and air cooling. Processor: NVIDIA RTX 2000 GPU (Ada Generation) Memory: 8 GB GDDR6 (ECC supported, 128-bit interface) Computational Power: 3,072 CUDA cores, 96 Tensor cores, 24 RT cores. Up to 14.5 TFOPS FP32 Connection: PCIe Gen 4 interface Data Transfer: Supports NVIDIA GPU Direct RDMA, NVENC, NVDEC Video: Supports H.265/H.264/AV1 hardware encoding & decoding Operating Temperature (VITA 47.1): -40°C to 85°C (when conduction cooled) Durability (MIL-STD-810): Shock resistance 40 g, Vibration resistance 0.1 g²/Hz Power: 90W to 130W OS: Windows or Linux (x86)
Price range
Delivery Time
Applications/Examples of results
Military Avionics Surveillance Unmanned Aerial Vehicle Navy Intelligence, Surveillance, and Reconnaissance (ISR) Embedded Systems
