Robust 12G-SDI XMC video capture solution

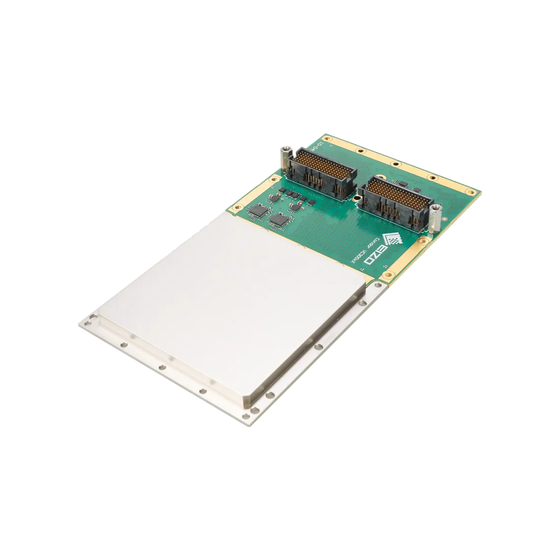

The Condor VC300xX is an ultra-high-definition (UHD) video capture solution in the XMC form factor designed for high-performance video processing. This device transfers raw video data to the host system with ultra-low latency via PCIe, enabling real-time viewing, processing, analysis, and display. This allows for seamless integration into workflows that require advanced video processing. One of its key features is its low power consumption of less than 20W, making it ideal for compact platforms sensitive to SWaP (Size, Weight, and Power) such as UAVs (unmanned aerial vehicles). This product is available in ruggedized variants for air cooling and conduction cooling, and can be integrated into systems aligned with VITA and SOSA standards. A comprehensive SDK is provided to simplify capture data management. It also supports VITA 46.9 VPX I/O signal mapping (X12d, X8d, X16s).
Inquire About This Product
basic information
Interface: XMC 1.0, XMC 2.0 (XMC+ available), x4 or x8 PCIe Gen 3 Capture Format: XMC 1.0 or XMC 2.0, raw video capture via PCIe Video Input: Up to 8 channels of input (supports 12G, 3G, HD-SDI formats) (100 Ohm differential) 2 channels of CVBS (NTSC/PAL) input (75 Ohm single-ended) Audio Input: 2 channels of stereo audio Output Type: Raw video capture via PCIe Power Consumption: Less than 20W Operating Temperature (VITA 47.3): CC4 (conductive cooling, -40°C to 85°C), AC3 (air cooling, -40°C to 70°C) Vibration Resistance (VITA 47.3): 0.1g/Hz Shock Resistance (VITA 47.3): 40g Software & Platform Support: Windows or Linux (x86 or ARM), VME, cPCI, VPX & PCIe (using adapter board)
Price range
Delivery Time
Applications/Examples of results
Military Surveillance Unmanned Aerial Vehicle Navy Intelligence, Surveillance, and Reconnaissance (ISR) Embedded Systems
catalog（2）
Download All Catalogs
