Accelerate AI inference with AGX Orin. An AI platform that can complete everything from development to deployment solely on the edge.
The BOXER-8642AI, which can be widely used for AI development, is capable of simultaneously processing large models and multiple AI tasks thanks to the GPU performance of the AGX Orin and LPDDR5 memory. It comes standard with Jetpack 5.1.1, allowing for immediate use of TensorRT and CUDA. This AI edge PC enables a smooth transition from proof of concept to mass production. Please check the datasheet for detailed specifications.
Inquire About This Product
basic information

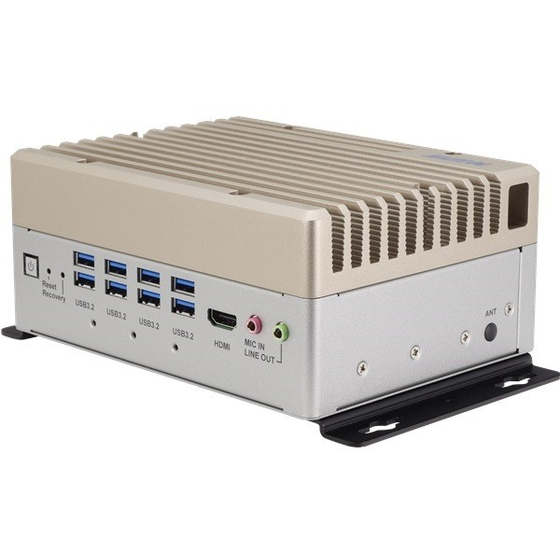

【AI Solution】NVIDIA Jetson AGX Orin 32GB/64GB 【CPU】AGX Orin 32GB: 8-core Arm Cortex-A78AE, AGX Orin 64GB: 12-core Arm Cortex-A78AE 【Memory】32GB/64GB LPDDR5 onboard memory 【Storage】64GB eMMC onboard (*OS boot) 【Display】HDMI2.0 x 1 【Front I/O】USB3.2 Gen2 (Type-A) x 8 (independent 10Gbps support), HDMI x 1, MIC IN x 1, LINE OUT x 1, reset button, recovery button, power button 【Rear I/O】LAN x 2, OS Flash, RS-232/422/485 (Rx/Tx) x 2 (1 port shared with CANBus FD), 2-pin power terminal, SMA antenna holes x 2 【Expansion】M.2 2230 E-Key x 1 (Wifi/BT), 2.5-inch SATA SSD drive bay x 1 For more details, please refer to the data sheet.
Price information
Others
Delivery Time
Applications/Examples of results
Applications: Edge PCs, AGVs, drones, robots, media centers, IoT edge devices, IoT controllers, AI, digital signage, etc.
Line up（6）
| Model number | overview |
|---|---|
| 【BOXER-8642AI-A1-5.1】 | Nvidia Jetson AGX Orin with 32GB, equipped with 32GB LPDDR5 + 64GB eMMC on board, LAN x 2, USB 3.2 x 8, HDMI, DC 12~24V input, pre-installed with Jetpack 5.1.1. |
| 【BOXER-8642AI-A1-AC-5.1】 | Nvidia Jetson AGX Orin with 32GB, onboard 32GB LPDDR5 + 64GB eMMC, LAN x 2, USB 3.2 x 8, HDMI, DC 12~24V input, Jetpack 5.1.1 pre-installed + Power Adapter. |
| 【BOXER-8642AI-A1-WIFI-AC-5.1】 | Nvidia Jetson AGX Orin with 32GB, onboard 32GB LPDDR5 + 64GB eMMC, LAN x 2, USB 3.2 x 8, HDMI, DC 12~24V input, Jetpack 5.1.1 pre-installed + Power Adapter + 802.11ac/a/b/g/n Dual-Band Wi-Fi + Bluetooth V5.0, 2T2R. |
| 【BOXER-8642AI-A2-5.1】 | Equipped with Nvidia Jetson AGX Orin 64GB, onboard 64GB LPDDR5 + 64GB eMMC, LAN x 2, USB 3.2 x 8, HDMI, DC 12~24V input, Jetpack 5.1.1 pre-installed. |
| 【BOXER-8642AI-A2-AC-5.1】 | Nvidia Jetson AGX Orin with 64GB, onboard 64GB LPDDR5 + 64GB eMMC, LAN x 2, USB3.2 x 8, HDMI, DC 12~24V input, Jetpack 5.1.1 pre-installed + Power Adapter |
| 【BOXER-8642AI-A2-WIFI-AC-5.1】 | Nvidia Jetson AGX Orin with 64GB, onboard 64GB LPDDR5 + 64GB eMMC, LAN x 2, USB 3.2 x 8, HDMI, DC 12~24V input, Jetpack 5.1.1 pre-installed + Power Adapter + 802.11ac/a/b/g/n Dual-Band Wi-Fi + Bluetooth V5.0, 2T2R. |
