This is an IV curve tracer compatible with perovskite solar cells!
The IVCT series is a measurement device that can be widely used from operational verification in the development and production processes of solar modules to shipping inspections. It achieves high-precision I-V curve measurements over a wide range using an asymmetric bipolar power supply. 【Features】 - I-V curve measurement across the entire range with an asymmetric bipolar power supply Equipped with an asymmetric bipolar power supply that allows for high-precision control, enabling stable acquisition of a wide range of I-V characteristics. - Delay function for stable measurements By measuring when the module characteristics are stable due to the delay time, reliable data can be obtained. - Four models to choose from according to application (IVCT-150/200/300/500) A lineup with rated outputs from 150V/4A to 500V/1.25A, flexibly accommodating applications from research to mass production. (*Rated outputs can be customized) - Detailed measurements possible with dedicated application Measurement results of the I-V curve are displayed in graph form (results from three quadrants). Acquired Voc, Isc, Pmax, Vpm, Ipm, FF, and temperature (optional) can be logged and output in CSV format.
Inquire About This Product
basic information
**Features** - Rated Output IVCT-150: Voltage up to 150V, Current up to 4A, Power up to 600W IVCT-200: Voltage up to 200V, Current up to 3A, Power up to 600W IVCT-300: Voltage up to 300V, Current up to 2A, Power up to 600W IVCT-500: Voltage up to 500V, Current up to 1.25A, Power up to 600W (*Rated output can be customized according to customer applications) - Measurement Items Voc, Isc, Pmax, Vpm, Ipm, FF, Temperature (optional) - I-V Measurement Method Method: Voltage sweep Sweep time: 10 to 1000ms (set in ms) Delay time: 1 to 1000ms (set in ms) Sweep direction: Short circuit ⇒ Open circuit, Open circuit ⇒ Short circuit, Short circuit ⇒ Open circuit ⇒ Short circuit, Open circuit ⇒ Short circuit ⇒ Open circuit - Size Dimensions: 700×1500×750mm (excluding monitor), Weight: approximately 300kg
Price information
Please feel free to contact us.
Delivery Time
※Please feel free to contact us.
Applications/Examples of results
Main Uses - Research and development of perovskite solar cells - Performance evaluation of solar modules - Operational verification and quality inspection on production lines
Detailed information
-

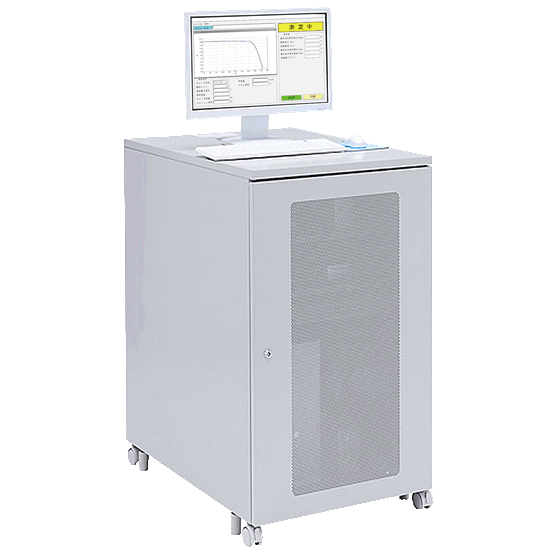

Main body image
-
Dedicated application image
Line up（4）
| Model number | overview |
|---|---|
| IVCT-150 | As a fixed output, the maximum voltage is 150V and the maximum current is 4A. |
| IVCT-200 | The fixed output is a maximum voltage of 200V and a maximum current of 3A. |
| IVCT-300 | As a fixed output, the maximum voltage is 300V and the maximum current is 2A. |
| IVCT-500 | As a fixed output, the maximum voltage is 500V and the maximum current is 1.25A. |
