A compact and high-speed camera that achieves accurate position recognition for robots.
In the robotics industry, accurate position recognition of robots is essential for improving work efficiency and ensuring safety. Particularly in tasks involving fast-moving objects or working in confined spaces, high-precision image processing and fast data transfer are required. Traditional cameras often face bottlenecks in size and processing speed, making accurate position recognition difficult. Our compact CoaXPress area camera addresses these challenges. 【Usage Scenarios】 - Parts pickup by robotic arms - Position detection of mobile robots - Automated inspection systems 【Benefits of Implementation】 - Accurate position recognition through high-speed image processing - Increased flexibility in installation locations due to miniaturization - High-speed data transfer via CoaXPress interface - Accurate recognition of details due to high resolution
Inquire About This Product
Related Videos
basic information

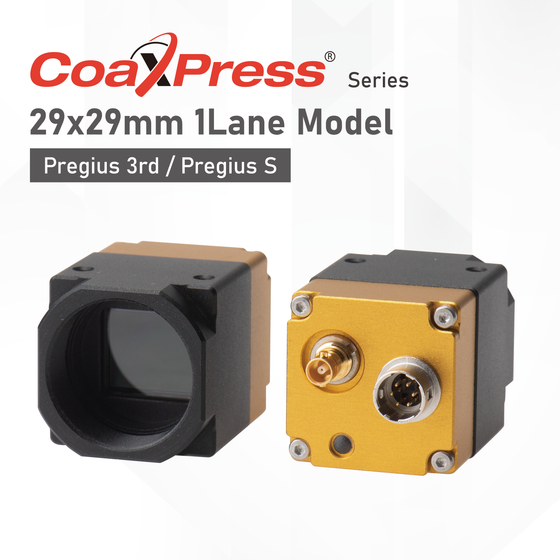

【Features】 - Compact housing with a size of 29mm square - High-speed CoaXPress interface - High-resolution lineup (0.5MP to 24.6MP) - Options for high-speed/low-speed models and monochrome/color models - Simplified wiring with PoCXP support 【Our Strengths】 - Low power consumption and low heat generation design - Mechanism design and production technology that achieves a high balance of compactness, heat dissipation, and mass production - Electrical design that maximizes the performance of various sensors and ensures industrial quality - Cost competitiveness leveraging the purchasing power and procurement capabilities of our parent company BOPIXEL - Advanced manufacturing combined with Japan's precision and delicacy
Price range
Delivery Time
Applications/Examples of results
Semiconductor front-end/back-end visual inspection, various alignments, and industrial image processing focused on semiconductors and electronics.
Line up（33）
| Model number | overview |
|---|---|
| BC-SMS05M3X1N | 0.5MP (IMX433) / mono / 243fps / CXP-3 / C mount / Micro BNC connector / Standard Model |
| BC-SCS05M3X1N | 0.5MP (IMX433) / color / 243fps / CXP-3 / C mount / Micro BNC connector / Standard Model |
| BC-SMS2M6X1N | 2MP (IMX430) / mono / 132fps / CXP-6 / C mount / Micro BNC connector / Standard Model |
| BC-SCS2M6X1N | 2MP (IMX430) / color / 132fps / CXP-6 / C mount / Micro BNC connector / Standard Model |
| BC-SMS5M10X1N | 5.1MP (IMX547) / mono / 122.9fps / CXP-10 / C mount / MicroBNC connector / Standard Model |
| BC-SCS5M10X1N | 5.1MP (IMX547) / color / 122.9fps / CXP-10 / C mount / Micro BNC connector / Standard Model |
| BC-SMS8M10X1N | 8.1MP (IMX546) / mono / 91fps / CXP-10 / C mount / MicroBNC connector / Standard Model |
| BC-SCS8M10X1N | 8.1MP (IMX546) / color / 91fps / CXP-10 / C mount / MicroBNC connector / Standard Model |
| BC-SMS12M10X1N | 12.4MP (IMX545) / mono / 68fps / CXP-10 / C mount / MicroBNC connector / Standard Model |
| BC-SCS12M10X1N | 12.4MP (IMX545) / color / 68fps / CXP-10 / C mount / MicroBNC connector / Standard Model |
| BC-SMS16M10X1N | 16.2MP (IMX542) / mono / 52.6fps / CXP-10 / C mount / Micro BNC connector / Standard Model |
| BC-SCS16M10X1N | 16.2MP (IMX542) / color / 52.6fps / CXP-10 / C mount / Micro BNC connector / Standard Model |
| BC-SMS20M10X1N | 20.4MP (IMX541) / mono / 42.7fps / CXP-10 / C mount / MicroBNC connector / Standard Model |
| BC-SCS20M10X1N | 20.4MP (IMX541) / color / 42.7fps / CXP-10 / C mount / Micro BNC connector / Standard Model |
| BC-SMS24M10X1N | 24.6MP (IMX540) / mono / 35.4fps / CXP-10 / C mount / Micro BNC connector / Standard Model |
| BC-SCS24M10X1N | 24.6MP (IMX540) / color / 35.4fps / CXP-10 / C mount / Micro BNC connector / Standard Model |
| BC-SMS05M10X1H | 0.5MP (IMX426) / mono / 1122fps / CXP-10 / C mount / Micro BNC connector / High-Speed Model |
| BC-SCS05M10X1H | 0.5MP (IMX426) / color / 1122fps / CXP-10 / C mount / Micro BNC connector / High-Speed Model |
| BC-SMS2M10X1H | 2MP (IMX422) / mono / 358.4fps / CXP-10 / C mount / Micro BNC connector / High-Speed Model |
| BC-SCS2M10X1H | 2MP (IMX422) / color / 358.4fps / CXP-10 / C mount / Micro BNC connector / High-Speed Model |
| BC-SMS5M12X1H | 5MP (IMX537) / mono / 236.4fps / CXP-12 / C mount / Micro BNC connector / High-Speed Model |
| BC-SCS5M12X1H | 5MP (IMX537) / color / 236.4fps / CXP-12 / C mount / Micro BNC connector / High-Speed Model |
| BC-SMS8M12X1H | 8.1MP (IMX536) / mono / 147.6fps / CXP-12 / C mount / MicroBNC connector / High-Speed Model |
| BC-SCS8M12X1H | 8.1MP (IMX536) / color / 147.6fps / CXP-12 / C mount / Micro BNC connector / High-Speed Model |
| BC-SMS12M12X1H | 12.4MP (IMX535) / mono / 96.6fps / CXP-12 / C mount / MicroBNC connector / High-Speed Model |
| BC-SCS12M12X1H | 12.4MP (IMX535) / color / 96.6fps / CXP-12 / C mount / MicroBNC connector / High-Speed Model |
| BC-SMS16M12X1H | 16.2MP (IMX532) / mono / 73.7fps / CXP-12 / C mount / MicroBNC connector / High-Speed Model |
| BC-SCS16M12X1H | 16.2MP (IMX532) / color / 73.7fps / CXP-12 / C mount / Micro BNC connector / High-Speed Model |
| BC-SMS20M12X1H | 20.4MP (IMX531) / mono / 58.6fps / CXP-12 / C mount / MicroBNC connector / High-Speed Model |
| BC-SCS20M12X1H | 20.4MP (IMX531) / color / 58.6fps / CXP-12 / C mount / Micro BNC connector / High-Speed Model |
| BC-SMS24M12X1H | 24.6MP (IMX530) / mono / 48.6fps / CXP-12 / C mount / Micro BNC connector / High-Speed Model |
| BC-SCS24M12X1H | 24.6MP (IMX530) / color / 48.6fps / CXP-12 / C mount / Micro BNC connector / High-Speed Model |
| BC-SUS8M12X1H | 8.1MP (IMX487) / UV / 133.2fps / CXP-12 / C mount / MicroBNC connector |
catalog（3）
Download All Catalogs
![8.1MP CoaXPress Area Camera [UV Compatible]](https://image.mono.ipros.com/public/catalog/image/01/10f/790860/IPROS17516324010241189363.jpeg?w=120&h=170)
Company information
We focus on the design, development, manufacturing, and sales of high-speed, high-resolution, and highly reliable machine vision cameras primarily using CoaXPress and CameraLink. In addition to developing standard products, we also offer development and customization tailored to customer requests. All camera design and development is carried out by our Japanese staff, ensuring design and production techniques that guarantee delicate and highly reliable standards in Japan, while integrating the dynamic action and speed of China to provide competitive products. At Japan Bopixel, we have successfully become the first camera manufacturer to utilize Ultra Low Power FPGA instead of the standard FPGA adopted by the majority of camera manufacturers. This Ultra Low Power FPGA reduces power consumption by over 50% compared to similar class FPGAs, significantly lowering power consumption and heat generation in cameras by addressing the heat source at its root. By actively adopting these next-generation key devices, we are taking a new approach to the heat generation issues that have traditionally been a challenge.
