Pipe Tight for Hospitals | Pipe penetration cover to enhance infection control
Lake Products Co., Pipe Tight / PIPETITE
Reduce infection risks in hospitals! Completely seal the gaps in piping penetrations to maintain a clean environment.

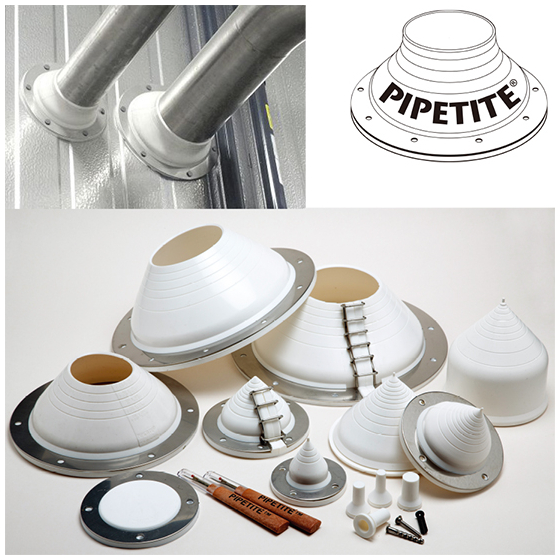

In hospitals, thorough hygiene management is required to prevent hospital-acquired infections. In particular, pipe penetrations are prone to dust and bacteria entering through gaps, which can increase the risk of infection. "Pipe Tight" is a silicone sealing cover that completely seals the gaps in pipe penetrations to maintain a clean environment. 【Usage Scenarios】 - Operating rooms - Clean rooms - Patient rooms - Examination rooms 【Benefits of Implementation】 - Reduced risk of infection - Improved cleanliness - Long-term cost savings - Ensuring safety for patients and healthcare workers
Inquire About This Product
basic information
【Features】 - Highly elastic, fits perfectly to piping and ensures complete sealing - Hygienic appearance, creates a sense of cleanliness with white silicone - Long-term cost reduction, lowers renovation costs due to aging deterioration from vibration and caulking - Compatible with pipe (cable) diameters from Φ6 to 380mm - A rich lineup for new installations, existing installations, and sealing purposes 【Our Strengths】 DKSH is a member of the Swiss global company "DKSH Group." The Technology Division provides a wide range of cutting-edge technologies from leading manufacturers in Europe, the United States, and Asia, focusing on various industrial machinery, machine tools, high-tech equipment, and special metals, while delivering prompt and high-quality after-sales service.
Price range
P1
Delivery Time
Applications/Examples of results
- Examples of Achievements 1. Food Factory: CIP Cleaning In addition to measures against foreign matter contamination, it is also optimal for customers who adopt CIP cleaning as a method for cleaning piping. The water hammer (water hammer and steam hammer) caused by CIP cleaning significantly vibrates the piping, which poses a risk of damaging the wall penetration areas of the piping. However, by using a structure that absorbs the vibrations of the PipeTite, this risk is eliminated. This has also resulted in a reduction of potential future renovation costs. Thus, the introduction of PipeTite not only ensures sealing and improves appearance but also enables significant cost reductions from a long-term perspective. 2. Semiconductor Factory: Clean Room Pressure tests are conducted to prove that there are no leaks (IP34, IP68 standards). *Test subjects = PipeTite Standard and Grommet The silicone used in PipeTite undergoes annealing (heat treatment, approximately 200°C for 4 hours) during manufacturing, which prevents adverse effects on semiconductors due to low molecular siloxane evaporation. - Industry Examples Food, Beverage, Dairy, Restaurants Pharmaceuticals, Hospitals, Various Research Institutes Semiconductors, Oil, Chemicals, Dyes It is used as a decorative cover for penetration holes in sanitary piping, sanitary equipment, and steam piping.
Line up（6）
| Model number | overview |
|---|---|
| Standard for new piping installation | Corresponding pipe diameter: 12mm-180mm, 【IP34】 Standard 0-25, 0-65, |
| Existing piping "recover" | Corresponding pipe diameter: 12mm - 380mm |
| Blindfold "Flat" | Corresponding pipe diameter: 0mm - 135mm |
| Pipe-in-pipe "sleeve" for pipes | Corresponding pipe diameters: 100, 150, 200 x 0-180 |
| Insert type "grommet" | Corresponding pipe diameter: 12mm-180mm, 【IP34】grommet 0-25, 0-65 |
| Insert type tube "Grommet Mini" | Corresponding wire diameter: Φ6mm, 8mm, 10mm, 12mm, [IP66/IP68] |
