Pipe Tight for Research Facilities | Cover for Piping Wall Penetration
Lake Products Co., Pipe Tight / PIPETITE
Protect the experimental environment! Prevent contamination and support safe research.
In research facilities, it is essential to thoroughly prevent the intrusion of foreign substances from the outside to ensure the accuracy and safety of experiments. In particular, pipe wall penetrations are prone to becoming pathways for contaminants to enter, which can compromise the reliability of experimental results. Traditional caulking often requires rework due to cracking and deterioration, which always carries risks. PipeTite was developed to reduce the risk of foreign substance intrusion in research environments and enhance the safety of experiments. 【Usage Scenarios】 - Clean rooms - Biotechnology research facilities - Chemical laboratories - Pharmaceutical research facilities 【Benefits of Implementation】 - Improved reliability of experimental data - Reduced contamination risks - Maintenance of hygienic environments in facilities - Ensured safety for researchers
Inquire About This Product
basic information

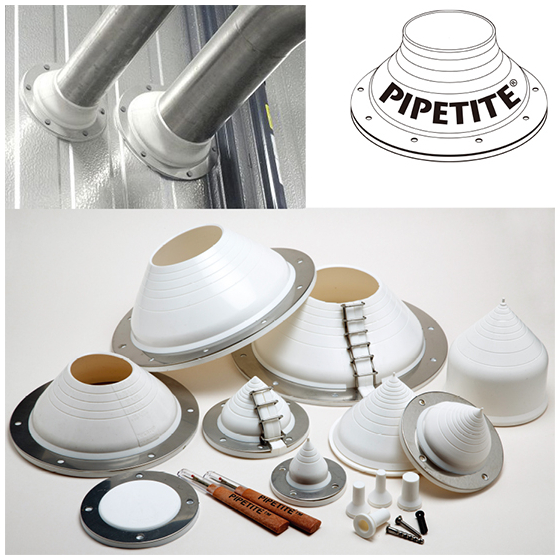

【Features】 - Highly elastic, perfectly adheres to piping for complete sealing - Hygienic appearance, creates a sense of cleanliness with white silicone - Long-term cost reduction, lowers renovation costs due to deterioration from vibration and caulking over time - Compatible with piping (cables) diameters from Φ6 to 380mm - A rich lineup for new installations, existing installations, and sealing applications 【Our Strengths】 As a member of the Swiss global company "DKSH Group," DKSH provides cutting-edge equipment necessary for research and development. We support our customers' research activities with expert technical support and prompt after-sales service.
Price range
P1
Delivery Time
Applications/Examples of results
- Examples of Achievements 1. Food Factory: CIP Cleaning In addition to foreign matter contamination measures, it is also optimal for customers who adopt CIP cleaning as a method for cleaning piping. The water hammer (water hammer and steam hammer) caused by CIP cleaning significantly vibrates the piping, which can damage the wall penetration areas. However, by using a structure that absorbs the vibrations of the pipe tight, this risk is eliminated. This also results in a reduction of potential future renovation costs. Thus, the introduction of pipe tight not only ensures airtightness and improves appearance but also enables significant cost reductions from a long-term perspective. 2. Semiconductor Factory: Clean Room Pressure tests are conducted to prove that there are no leaks (IP34, IP68 standards). *Test subjects = Pipe Tight Standard and Grommet The silicone used in Pipe Tight undergoes annealing (heat treatment, approximately 200°C for 4 hours) during manufacturing, preventing adverse effects on semiconductors due to low molecular siloxane evaporation. - Industry Examples Food, Beverage, Dairy, Restaurants Pharmaceuticals, Hospitals, Various Research Institutes Semiconductors, Oil, Chemicals, Dyes It is adopted as a cover for penetration holes in sanitary piping, sanitary equipment, and steam piping.
Line up（6）
| Model number | overview |
|---|---|
| Standard for new piping installation | Corresponding pipe diameter: 12mm-180mm, [IP34] Standard 0-25, 0-65, |
| Recover for existing piping | Corresponding pipe diameter: 12mm - 380mm |
| Blindfold "Flat" | Corresponding pipe diameter: 0mm - 135mm |
| Pipe-in-pipe "sleeve" for pipes | Corresponding pipe diameters: 100, 150, 200 x 0-180 |
| Insert type "grommet" | Corresponding pipe diameter: 12mm-180mm, 【IP34】grommet 0-25, 0-65 |
| Insert type tube "Grommet Mini" | Corresponding wire diameter: Φ6mm, 8mm, 10mm, 12mm, 【IP66/IP68】 |
