PMI manufactured miniature linear guide will be shipped in as little as 3 days.

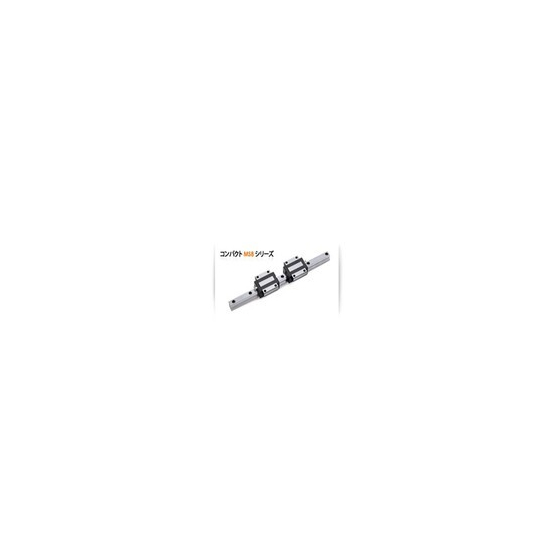

Compact MSB Series
With 20 years of domestic sales experience and being adopted by major machine tool manufacturers, you can use it with confidence.
【Series】 ・MSB: Compact Type, High Load MSB~E, TE/Flanged Type MSB-S, TS/Square Type 【Stock Sizes】 ・MSB15, 20, 25, 30 【Block Dustproof Specification】 ・SS Type: Bidirectional End Seal + Bottom Seal 【Preload】 ・Light Preload (FC) 【Target Length】 (MSB15, 20, 25) *160, 220, 280, 340, 400, 460, 520, 580, 640, 700, 760, 820, 940, 1000, 1060, 1120, 1180, 1240, 1300, 1360, 1420, 1480, 1540, 1600, 1660, 1720 (MSB30) 280, 360, 440, 520, 600, 760, 840, 920, 1000, 1080, 1160, 1240, 1320, 1400, 1480, 1560, 1640, 1720 *160 is only for 15
Inquire About This Product
basic information
PMI Corporation was established in 1990 and primarily produces ball screws, precision ball screw splines, linear guides, ball splines, and actuators, which are essential components of precision machinery. We have approximately 20 years of sales experience. 【Main Features】 • Compact, four-directional load In the compact design block, four rows of balls are arranged at a 45° contact angle, providing the same rated load in all four directions. • Low noise and smooth operation The use of synthetic resin for the ball circulation part enables low noise and smooth operation. • Automatic self-aligning capability The circular arc structure of the front combination (DF set) greatly enhances self-aligning properties, allowing for high precision and smooth linear motion even under applied pressure by absorbing mounting errors. • Compatibility Rails and blocks of the same size can be freely combined. Stock interchangeable parts can be utilized for the installation and maintenance of linear guides. 【Others】 - While we do not offer a three-day response, please contact us separately if you require changes in preload, accuracy, length, etc. We also accept inquiries regarding treatments such as Raiden processing. - Please consult us regarding replacements from other companies. (Final confirmation is to be done by the customer.)
Price information
Please download the attached price list and confirm it. You can check the product model in the price list and arrange for it through Amazon. If you have a bulk order, please consult with us if you are a returning customer.
Delivery Time
※Please be aware that we may not be able to accommodate your request due to stock availability and holidays.
Applications/Examples of results
Welding machines, binding machines, automatic packaging machines, XY axes for general industrial machinery, soldering equipment, tool exchange devices, material supply devices, CNC milling machines, machine tools, conveyor systems, inspection machines, robots, woodworking machines, construction machinery, automation machinery, etc.
Detailed information
-
Guide block structure
-
・MSB: Compact type, high load capacity, compatible with other brands MSB~E, TE/Flange type MSB-S, TS/Square type
-
MSB: E Block (Flange Type)
-
MSB:TE Block (Flanged Type)
-
MSB: S Block (Square Type)
-
MSB:TS Block (Square Type)
