Share, pull, peel, push, for strength testing of fine joints.

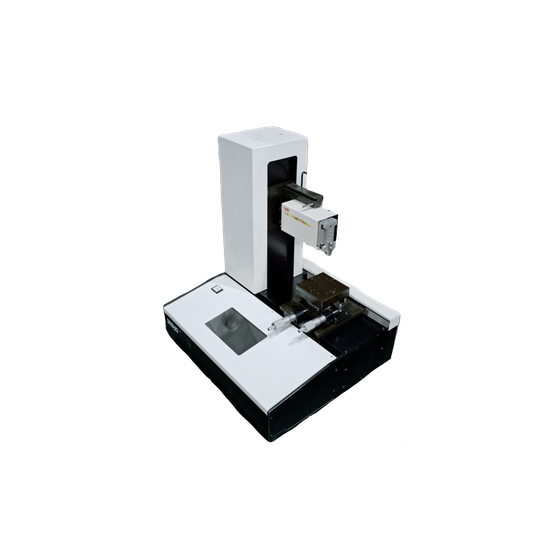

In the semiconductor industry, evaluating the strength of fine joints is crucial to ensure product reliability. Particularly as miniaturization progresses, even slight abnormalities in joints can affect the overall performance of the product. Variations in joint strength and poor bonding not only reduce product yield but also compromise the reliability of the final product. The bond tester 'SS-30WD' accommodates a variety of tests such as shear, pull, peel, and push, meeting all needs for strength evaluation of fine joints. 【Application Scenarios】 - Shear tests for die, ball, and bump - Wire pull tests - Peel tests (90°/180°) - Push tests 【Benefits of Implementation】 - Wide joint evaluation due to support for various tests - Reliable data acquisition through high-precision measurements - Improved analysis efficiency with data processing software - Quality assurance with JQA calibration certificates
Inquire About This Product
basic information
【Features】 - Reliable measurement accuracy with excellent reproducibility - Data processing software that visualizes measurement results - Assurance with certification — JQA calibration certificate included as standard 【Our Strengths】 Nishishin Shoji Co., Ltd. leverages years of experience and technical expertise to provide optimal products tailored to our customers' needs. Utilizing the know-how gained from designing and manufacturing semiconductor production equipment, we offer high-quality products and support.
Price range
Delivery Time
Applications/Examples of results
【Usage】 ■ Inspection in the chip LED manufacturing process, etc. *For more details, please refer to the related URL (our company website) or contact us.
catalog（1）
Download All Catalogs
Company information
Since its establishment on March 10, 1952, Seishin Shoji Co., Ltd. has introduced a variety of products to the domestic market. As a trading company, it has particularly contributed to the field of analysis, starting with the import of analytical standard materials. Additionally, while it has been active as a technical trading company in the electronic components industry, in recent years it has expanded not only as a trading company but also into the design and manufacturing of new electronic devices, making significant strides in the manufacturing sector and achieving a wide range of activities both domestically and internationally.
