Acidic Liquid Compatible TSP Pump AC Model for Pharmaceuticals

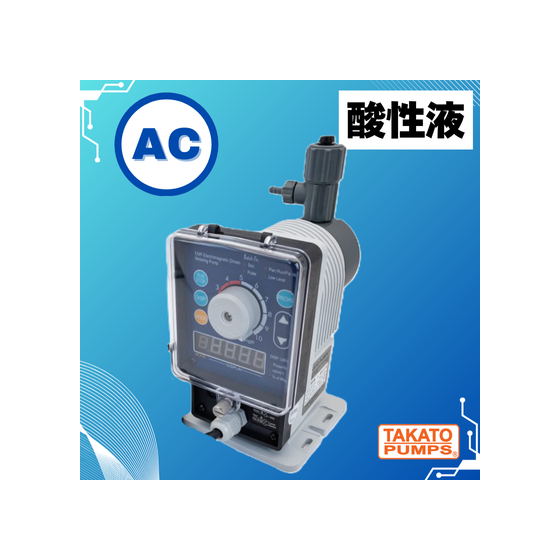

Solenoid-driven quantitative diaphragm pump TSP series AC type
A diaphragm pump with excellent chemical resistance that supports pharmaceutical research and manufacturing.
In the pharmaceutical industry, the accurate transfer of reagents is a crucial factor that affects the reproducibility of research and the quality of products. In particular, acidic reagents can corrode the materials of pumps, making proper pump selection essential. Our acid-resistant TSP pump AC model uses materials with excellent corrosion resistance to prevent reagent degradation. It features a solenoid-driven system for accurately delivering small amounts of reagents, waterproof performance suitable for outdoor use, and an easy-to-read digital display, meeting the needs of the pharmaceutical industry. 【Application Scenarios】 * Quantitative supply of reagents in laboratories * Addition of chemicals on manufacturing lines * Reagent supply in quality control 【Benefits of Implementation】 * Improved reliability of experiments and manufacturing through accurate reagent supply * Cost reduction due to longer pump lifespan * Increased work efficiency
Inquire About This Product
basic information
**Features** * Excellent corrosion resistance resin pump * Solenoid drive system for precise small volume delivery * Waterproof performance equivalent to IP65, suitable for outdoor use * Compatible with 100-240V power supply * Easy-to-read digital display **Our Strengths** We manufacture and sell industrial equipment and urea water production systems, providing products tailored to our customers' needs.
Price information
Reference price TSP-60,100,200-AC-S: ¥80,000-
Delivery Time
Applications/Examples of results
A corrosion-resistant resin pump capable of transferring various chemicals. Ideal for accurately delivering small quantities with a solenoid drive system.
Line up（3）
| Model number | overview |
|---|---|
| TSP-60-AC-S | Maximum discharge volume: 60 mL/min Maximum discharge pressure: 1 MPa Rated voltage: AC 100V to 240V single phase Frequency: 50/60 Hz Transfer liquid temperature: 0 to 40°C (must not freeze) Material: (liquid contact part) PVC / (diaphragm) PTFE / (packing) VITON Weight: 2.8 kg Connection size (discharge side/suction side): Φ6 × Φ11 Stroke count: 1 to 200 times/min Stroke length: 0.0 to 1.0 mm Transferable viscosity: 100 mPa·s |
| TSP-100-AC-S | Maximum discharge volume: 100 mL/min Maximum discharge pressure: 0.7 MPa Rated voltage: AC 100V to 240V single phase Frequency: 50/60 Hz Transfer liquid temperature: 0 to 40°C (must not freeze) Material: (liquid contact part) PVC / (diaphragm) PTFE / (packing) VITON Weight: 2.8 kg Connection size (discharge side/suction side) Φ6 × Φ11 Stroke count: 1 to 200 times/min Stroke length: 0.0 to 1.0 mm Transferable viscosity: 100 mPa·s |
| TSP-200-AC-S | Maximum discharge volume: 200 mL/min Maximum discharge pressure: 0.35 MPa Rated voltage: AC 100V to 240V single phase Frequency: 50/60 Hz Transfer liquid temperature: 0 to 40℃ (must not freeze) Material: (liquid contact part) PVC / (diaphragm) PTFE / (packing) VITON Weight: 2.8 kg Connection size (discharge side/suction side) Φ6×Φ11 Stroke count: 1 to 200 times/min Stroke length: 0.0 to 1.0 mm Transferable viscosity: 100 mPa·s |
