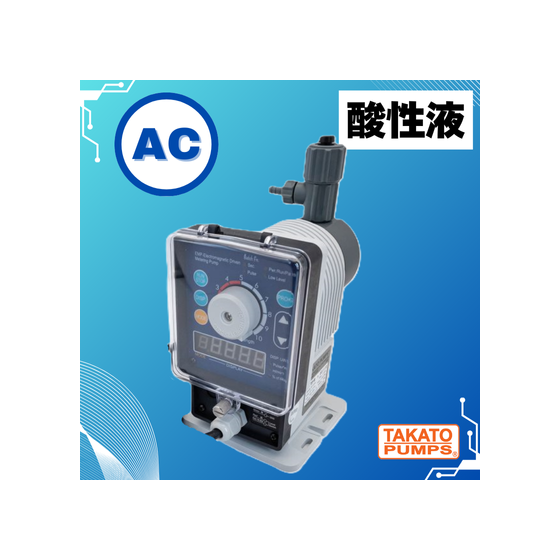

AC Model TSP Pump for Acidic Liquid for Electronic Circuit Boards
Solenoid-driven quantitative diaphragm pump TSP series AC type
In the etching process of electronic substrates. Achieving corrosion resistance and precise micro-injection.
In the etching process of the electronic circuit board industry, the precise supply of chemicals significantly affects product quality. Particularly, accurate flow control of the chemicals is essential for uniform etching treatment. Inadequate chemical supply can lead to defects in the substrate and a decrease in yield. Our acid-compatible TSP pump AC model features a corrosion-resistant design and a solenoid-driven system that allows for precise micro-dosing, contributing to solving challenges in the etching process. 【Usage Scenarios】 - Etching process in electronic circuit board manufacturing plants - Research and development requiring chemical supply 【Benefits of Implementation】 - Reduction of chemical waste - Improvement in etching quality - Enhancement of yield
Inquire About This Product
basic information
【Features】 - A corrosion-resistant resin pump capable of transferring various chemicals. - Adopts a solenoid drive system ideal for accurately dispensing small amounts. - Waterproof performance equivalent to IP65, suitable for outdoor use. - Compatible with power supplies ranging from 100 to 240V. - Features a user-friendly digital display. 【Our Strengths】 We manufacture and sell industrial equipment and urea water production systems, allowing us to propose products tailored to our customers' needs.
Price information
Reference price TSP-60,100,200-AC-S: ¥80,000-
Delivery Time
Applications/Examples of results
A corrosion-resistant resin pump capable of transferring various chemicals. Ideal for accurately delivering small quantities with a solenoid drive system.
Line up（3）
| Model number | overview |
|---|---|
| TSP-60-AC-S | Maximum discharge volume: 60 mL/min Maximum discharge pressure: 1 MPa Rated voltage: AC 100V to 240V single phase Frequency: 50/60 Hz Transfer liquid temperature: 0 to 40°C (must not freeze) Material: (liquid contact part) PVC / (diaphragm) PTFE / (packing) VITON Weight: 2.8 kg Connection size (discharge side/suction side) Φ6 × Φ11 Stroke count: 1 to 200 times/min Stroke length: 0.0 to 1.0 mm Transferable viscosity: 100 mPa·s |
| TSP-100-AC-S | Maximum discharge volume: 100 mL/min Maximum discharge pressure: 0.7 MPa Rated voltage: AC 100V to 240V single phase Frequency: 50/60 Hz Transfer liquid temperature: 0 to 40°C (must not freeze) Material: (liquid contact part) PVC / (diaphragm) PTFE / (packing) VITON Weight: 2.8 kg Connection size (discharge side/suction side): Φ6 × Φ11 Stroke count: 1 to 200 times/min Stroke length: 0.0 to 1.0 mm Transferable viscosity: 100 mPa·s |
| TSP-200-AC-S | Maximum discharge volume: 200 mL/min Maximum discharge pressure: 0.35 MPa Rated voltage: AC 100V to 240V single phase Frequency: 50/60 Hz Fluid temperature: 0 to 40°C (must not freeze) Material: (wet parts) PVC / (diaphragm) PTFE / (gasket) VITON Weight: 2.8 kg Connection size (discharge side / suction side): Φ6 × Φ11 Stroke count: 1 to 200 times/min Stroke length: 0.0 to 1.0 mm Transportable viscosity: 100 mPa·s |
