PMI Corporation manufactured immediate delivery items Miniature MSC Series

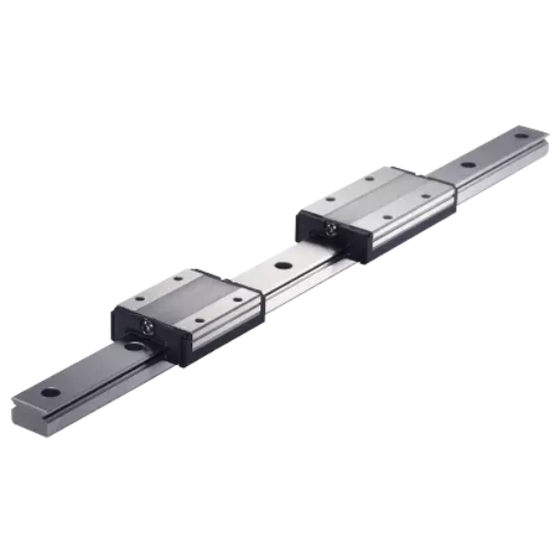

Stainless Steel Miniature MSC Series
With 20 years of domestic sales experience and being adopted by major machine tool manufacturers, you can use it with confidence.
【Series】 ・MSC: Compact Type MSC12LM1LLF0M+R195-10/10NM 【Stock Size】 ・MSC12 LM1LLF0M+R195-10/10NM 【Block Type】 ・LM Type: Heavy Load Type (Block made of stainless steel) One block 【Dust Protection Parts】 ・LL Low Friction End Seal 【Preload】 ・Medium Load (F0) 【Target Length】 ・195 mm
Inquire About This Product
basic information
PMI Corporation was established in 1990 and primarily produces ball screws, precision ball screw splines, linear guides, ball splines, and actuators, which are essential components of precision machinery. We have approximately 20 years of sales experience. 【Main Features】 The MSC standard type has a double-row Gothic arc groove shape. The balls are arranged at a 45° contact angle, allowing for equal loading of radial, reverse radial, and lateral loads. With a compact design and the adoption of low friction resistance end seals, it can be applied to all types of small machinery. Each circulation part of the balls is supplied with sufficient lubricant, enabling optimal lubrication under any installation conditions, thereby improving performance such as running accuracy, lifespan, and reliability.
Price information
It can be arranged from Amazon. If you have a bulk order, please consult with us if you are a continuing customer.
Delivery Time
※Please be aware that we may not be able to accommodate your request due to stock availability and holidays.
Applications/Examples of results
Welding machines, binding machines, automatic packaging machines, XY axes for general industrial machinery, soldering equipment, tool exchange devices, material supply devices, CNC milling machines, machine tools, conveying devices, inspection machines, robots, woodworking machines, construction machinery, automation machinery, etc.
Detailed information
-
Block structure
-
MSC Series
-
R dimension
-
Dimension Table 1
-
Dimension Table 2
Line up（1）
| Model number | overview |
|---|---|
| MSC Series | Stainless Steel Miniature MSC Series |
catalog（1）
Download All Catalogs
