0.8 power factor compatible. A large load bank that can be controlled in stages under actual load conditions with a capacity of 6.0 MVA.

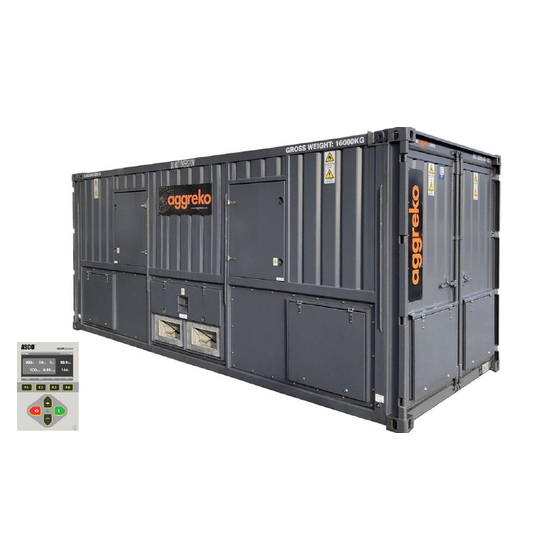

The Aggreko 5.0, 6.0 MVA load bank MC1C is a large-capacity testing device used to verify the performance of generators and UPS under actual operating conditions. It can finely control loads from 1 kVA to 6,300 kVA, and with a power factor of 0.8, it enables real load testing that includes reactive power. The included handheld terminal allows for intuitive operation of load increases, rapid surges, and shutdowns, significantly improving testing efficiency on-site. The device is housed in a 10ft container, offering excellent transportability and durability, and can operate stably even in harsh environments. With multiple protection features and a robust structure, it is a load bank that balances safety and reliability.
Inquire About This Product
basic information
■ Electrical Specifications - Rated Voltage: 400V (50Hz) / 480V (60Hz) - Maximum Load Capacity: 5000 kVA (50Hz) / 6000 kVA (60Hz) - Compatible with resistive + reactive loads (0.8 power factor testing possible) - Load Steps: Fine control in units of 1 kW / 5 kVAr - Central control of multiple units (up to 14 units) via SIGMA2 ■ Protection Features - Overcurrent, short circuit, and ground fault protection (equipped with Siemens 3WL 4000A CB) - Temperature rise monitoring and fan anomaly monitoring - Phase sequence monitoring (reverse phase prevention) - Fan interlock linked to load (load can only be applied when cooling is secured) - Leakage protection: 400 to 1200A - Short circuit protection: 1.25 to 12 × In
Price range
Delivery Time
Applications/Examples of results
- Load testing of UPS and emergency generators in data centers Ideal for confirming backup performance at a power factor of 0.8, close to actual operation - Regular inspections of emergency power supply equipment in factories and plants - Factory Acceptance Testing (FAT) for generator manufacturers - Startup testing of power receiving and transforming equipment and performance verification during renovation work - Preliminary verification of temporary power supply for large-scale events
