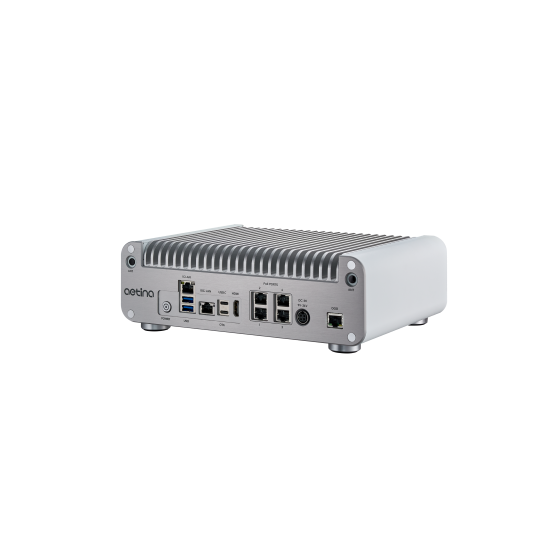

DeviceEdge Jetson Series
● The NVIDIA Jetson AGX Orin module offers up to 275 TOPS. The NVIDIA Jetson AGX Orin 64GB module, consisting of 2048 NVIDIA CUDA cores and 64 Tensor cores, enables server-class AI inference at the edge with low latency. ● It is a highly expandable fanless system that incorporates LTE/5G compatible M.2 B-Key x1, Wi-Fi/BT compatible M.2 E-Key x1, and storage-compatible M.2 M-Key x1. In terms of communication, the onboard 2 or 4 x PSE ports support 2 or 4 x POE cameras, and the 1x10GbE port achieves a maximum data speed of 100 billion bits per second, which is ten times that of the conventional GbE standard. ● It has been specially designed to achieve fanless and silent operation to cater to diverse applications such as smart cities and smart agriculture, where cost-effective maintenance and improved reliability are required. It operates over a wide temperature range of -25°C to 55°C and supports a wide input power range of 9 to 36VDC, allowing for flexible power supply options.
Inquire About This Product
basic information
• Compatible with NVIDIA Jetson AGX Orin 32GB/64GB series • 2/4 x IEEE 802.3af GbE PSE ports • 1 x GbE port, 1 x 10GbE port • 1 x M.2 B-Key / 1 x M.2 E-Key / 1 x M.2 M-Key slot • Wide input voltage range of 9 to 36 VDC • Operating temperature -25°C ~ +55°C • Fanless design
Price range
Delivery Time
Applications/Examples of results
The NVIDIA Jetson series of products has been known as the smallest embedded systems, but the new generation "NVIDIA Jetson AGX Xavier" maintains the advantage of system miniaturization while improving edge computing performance by about 20 times compared to the previous generation, and achieving over 10 times improvement in energy efficiency. With unprecedented processing power, remarkable energy efficiency, and a compact size that is easy to integrate, Jetson is set to create a new wave in AIoT applications.
catalog（2）
Download All Catalogs
Company information
Aetina Japan Co., Ltd. is a company that leverages its expertise in GPU accelerators, edge computing, and system integration to provide an environment where businesses can confidently engage in innovation. We smoothly propose industrial edge AI solutions tailored to diverse needs and support as a reliable partner at various stages from development to deployment. Our one-stop service streamlines the implementation of edge AI applications and promotes digital transformation that transcends our customers' imagination and traditional boundaries.
