Linear encoder with 0.1mm display for medical devices

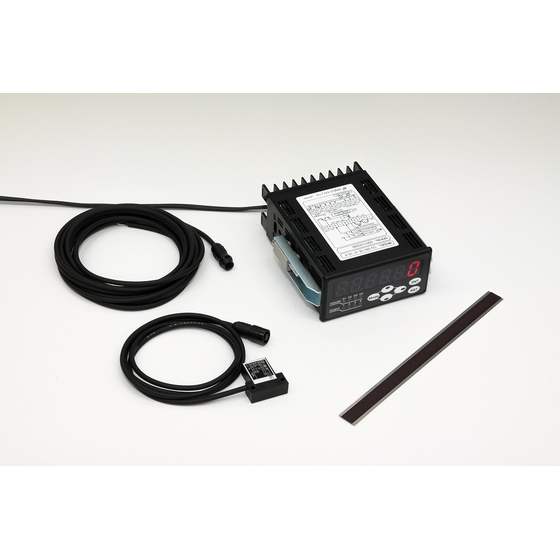

Magnetic Linear Encoder "SI-140 System" SI-140PAC (Magnetic Scale) Length Measurement Sensor Measuring Length Makomeasure
Supports precise operation of medical devices. Achieves accurate position measurement without contact.
In the medical device industry, precise positioning and operation are required. Particularly in situations where accuracy below the millimeter level is demanded, such as in surgical assistance robots and inspection devices, obtaining accurate positional information is essential. Conventional measurement methods may lead to measurement errors and operational issues. Our linear encoder package, equipped with a 0.1mm display, can be used immediately with an AC100V power supply. Non-contact measurement minimizes the impact of dirt and provides accurate positional information in a digital display. 【Application Scenarios】 - Position control for surgical assistance robots - Precise position adjustment for inspection devices - Management of molding accuracy for medical 3D printers 【Benefits of Implementation】 - Improved operability through high-precision position measurement - Enhanced reliability through non-contact measurement - Improved visibility through digital display
Inquire About This Product
Related Videos
basic information
【Features】 - Display with 0.1mm resolution - Non-contact measurement - Comes with a 2m magnetic scale, extendable - Usable with AC100V power supply - Magnetic type, resistant to dirt 【Our Strengths】 - Specialized manufacturer of magnetic sensors - Years of experience and know-how - Optimal solutions through custom support - 3-year product warranty - Developed and manufactured domestically
Price information
Please contact us.
Price range
P3
Delivery Time
P3
※Please contact us.
Applications/Examples of results
I think it would be easier to understand if you imagine the movement of a height measuring device when measuring height.
Line up（1）
| Model number | overview |
|---|---|
| SI-140PAC | Head, magnetic scale, counter package type |
catalog（6）
Download All Catalogs
![Company Profile [Makome Laboratory] A4 Version](https://image.mono.ipros.com/public/catalog/image/01/211/289218/IPROS05290833112264759127.jpeg?w=120&h=170)
CAD data（6）
| Model number | overview | File |
|---|---|---|
| SI-140PAC | Mako Major Counter Package |
|
| SI-140PAC | Mako Major Counter Package |
|
| SIE-140-P1 | Connector-equipped head |
|
| SIE-140-P1 | Connector-equipped head |
|
| EX-140 | SIE-140-P1 SIE-141-P1 extension cable |
|
| EX-140 | SIE-140-P1 SIE-141-P1 extension cable |
|
