Non-contact linear encoder for railways

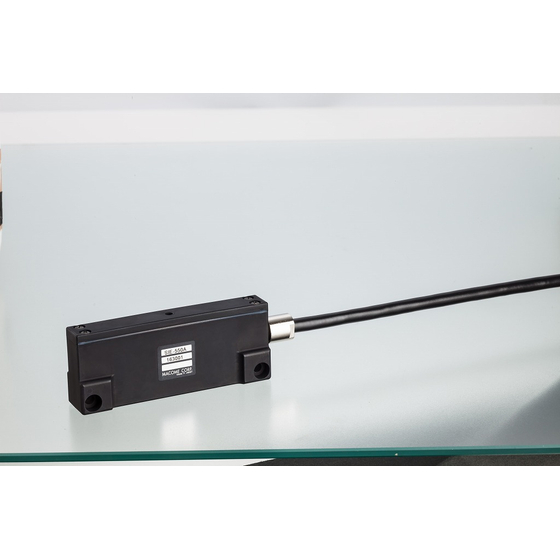

High Gap Linear Encoder Length Measurement Sensor SIE-550A
For position detection of railway vehicles. Magnetic encoders that can withstand long distances and harsh environments.
In the railway industry, accurately grasping the location information of vehicles is essential for safe operation and efficient management. Particularly in environments where laser measurement is difficult, such as inside tunnels or under severe weather conditions, and in situations requiring long-distance position detection, reliable measurement technology is necessary. Our non-contact linear encoders utilize a magnetic system to achieve stable measurement even in harsh environments. 【Application Scenarios】 - Position detection of railway vehicles - Position control of platform doors - Position management within vehicle depots - Switch control 【Benefits of Implementation】 - Capability for long-distance measurement - Reduced maintenance frequency - Stable operation in harsh environments - Improved safety
Inquire About This Product
basic information
**Features** - Non-contact type, resulting in less wear and degradation - Supports a maximum gap of 26mm and a track deviation of ±10mm - Repeatability accuracy of ±0.05mm - High-speed response of 10m/sec - Can be installed on curved surfaces (with R restrictions) **Our Strengths** - Specialized manufacturer of magnetic sensors - Years of experience and expertise - Provision of optimal solutions through custom support - 3-year product warranty - Domestic development and manufacturing
Price range
Delivery Time
P4
Applications/Examples of results
High-rise elevator Theme park vertical drop attraction Automated warehouse Large LCD screen transport device Multi-story bicycle parking lot Multi-story car parking lot Logistics warehouse Crash testing device Large crane arm length measurement
catalog（4）
Download All Catalogs
![Company Profile [Makome Laboratory] A4 Version](https://image.mono.ipros.com/public/catalog/image/01/211/289218/IPROS05290833112264759127.jpeg?w=120&h=170)
CAD data（4）
| Model number | overview | File |
|---|---|---|
| SIS-550 | Magnetic scale incremental *If CAD for the mounting rail (guide rail) is needed, please use SIG-210. |
|
| SIS-550 | Magnetic scale incremental *If CAD for the mounting rail (guide rail) is needed, please use SIG-210. |
|
| SIE-550A | Head Incremental |
|
| SIE-550A | Head Incremental |
|
