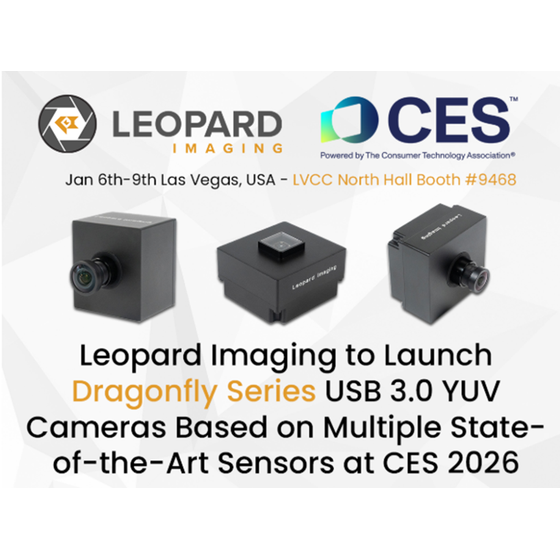

AI Sensing LLC launches the "Dragonfly" series of USB 3.0 cameras with built-in ISP from Leopard Imaging.
~Low-latency YUV output and plug-and-play to accelerate AI and robot development~ 【Overview】 Leopard Imaging has released the "Dragonfly" series, a compact high-performance imaging module with a fully integrated image signal processor (ISP) that supports USB 3.0 with a maximum transfer speed of 5Gbps (gigabits per second). This product minimizes the load on the host side by completing advanced image processing within the camera, enabling seamless system integration.
Inquire About This Product
basic information
【Features of this product】 1. No external processing required with "Built-in ISP and direct YUV output" - Automatic exposure, white balance, and color correction are performed in real-time within the camera. This allows for low-latency video streams without consuming image processing resources on the host PC. 2. Outstanding compatibility with "Plug and Play" - Compliant with UVC (USB Video Class). In addition to Windows and Linux, it also supports the NVIDIA Jetson platform, allowing for immediate development without complex driver installations. 3. A rich lineup to meet diverse needs - A variety of sensor options (such as AR0234, IMX676, AR0822) are available to suit different applications, including global shutter, rolling shutter, and autofocus.
Price information
For more details, please feel free to contact us.
Delivery Time
Applications/Examples of results
Main Application Areas • Robotics and Automated Guided Vehicles: Real-time visual navigation • AI and Edge Devices: Input sources for object detection and image recognition • Smart Factory: Industrial inspection and automation on high-speed lines • Machine Vision: Rapid prototyping
Line up（8）
| Model number | overview |
|---|---|
| LI-USB30-AR0234-YUV-120H (2.3M Global Shutter) | [High-speed moving objects and robots] Capable of acquiring distortion-free images. Ideal for AMR self-position estimation (SLAM) and high-speed line inspection. |
| LI-USB30-AR0822-YUV-099H (8M (4K) High Dynamic Range) | [Outdoor/Traffic Monitoring] HDR compatible. Reduces black clipping and white blowout even in backlighting or environments with significant brightness differences, capturing images clearly. |
| LI-USB30-IMX258-YUV-AF-079D (13M Auto Focus (AF)) | [Medical/Document Scan] Automatically adjusts focus for objects with varying distances. For handheld devices and inspection equipment. |
| LI-USB30-IMX676-YUV-115H (12M high resolution, square aspect ratio) | 【Wide-Angle Surveillance / 360-Degree Camera】 A sensor with an aspect ratio close to 1:1. Combined with a wide-angle lens for monitoring with minimal blind spots. |
| LI-USB30-OG05B20-YUV-090H (5M Global Shutter) | Industrial machine vision: For precision inspection requiring high resolution and global shutter, as well as accurate trigger shooting. |
| LI-USB30-AR0830C-YUV-085H (8M (4K) Latest Generation CMOS) | Next-generation edge AI: High-sensitivity, low-noise images with the AR0830 sensor. A high-quality input source for AI inference. |
| LI-USB30-AR1223-YUV-098H (12M high pixel rolling shutter) | High-Resolution Still Images & Archives: For detailed scratch inspections requiring resolutions beyond 4K and for high-definition video recordings. |
| LI-USB30-AR0246-YUV-088H (2M FHD・Low Power Consumption) | [Embedded Devices / IoT] Standard Full HD resolution. For general-purpose applications that require stable image performance while keeping system complexity in check. |
Company information
Ai Sensing LLC serves as the Japanese agent for Leopard Imaging, a U.S. company specializing in advanced imaging technology. We ensure the reliable and prompt delivery of the company's high-performance camera modules and video solutions to customers in Japan. Our greatest strength lies in having experienced engineers in-house, despite being a trading company. This allows us to establish a system that can consistently respond to everything from product selection to post-implementation technical support, flexibly addressing our customers' advanced needs.
